Brother MFC-8370DN Service Manual

5-126
Confidential
9.8.67 Switch Back Roller ASSY
(1) Remove the cup B M3x10 Taptite screw, and remove the Gear 34 from the ADF chute
ASSY.
(2) Release the Hook of the LF roller gear 27N2 to remove the LF roller gear 27N2, and
remove the Bushing 6.
(3) Remove the Conductive bushing N from the ADF chute ASSY, and remove the LF roller
3 ASSY from the ADF chute ASSY.

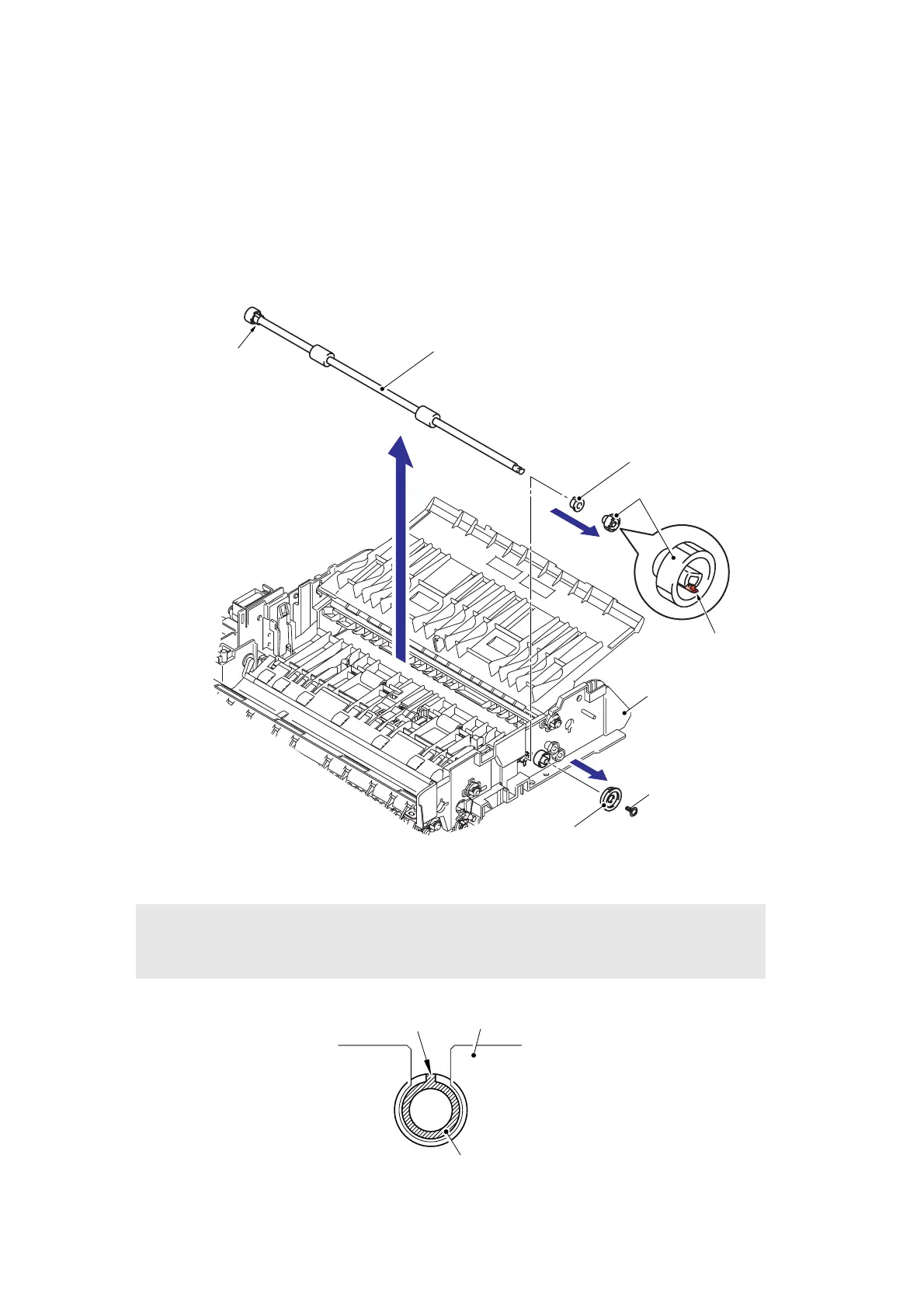

Fig. 5-139
Fig. 5-140
Assembling Note:
• When assembling the Switch back roller ASSY, assemble the Conductive bushing N with
aligning the Boss of the Conductive bushing N with the notch on the ADF chute ASSY.
1
2
3
Taptite cup B M3x10
ADF chute ASSY
LF roller gear 27N2
Hook
Switch back roller ASSY
Bushing 6
Gear 34
Conductive bushing N
Boss
ADF chute ASSY
Conductive bushing N
