Brother MFC-8370DN - Home Position Sensor; Pulley ASSY

5-138
Confidential

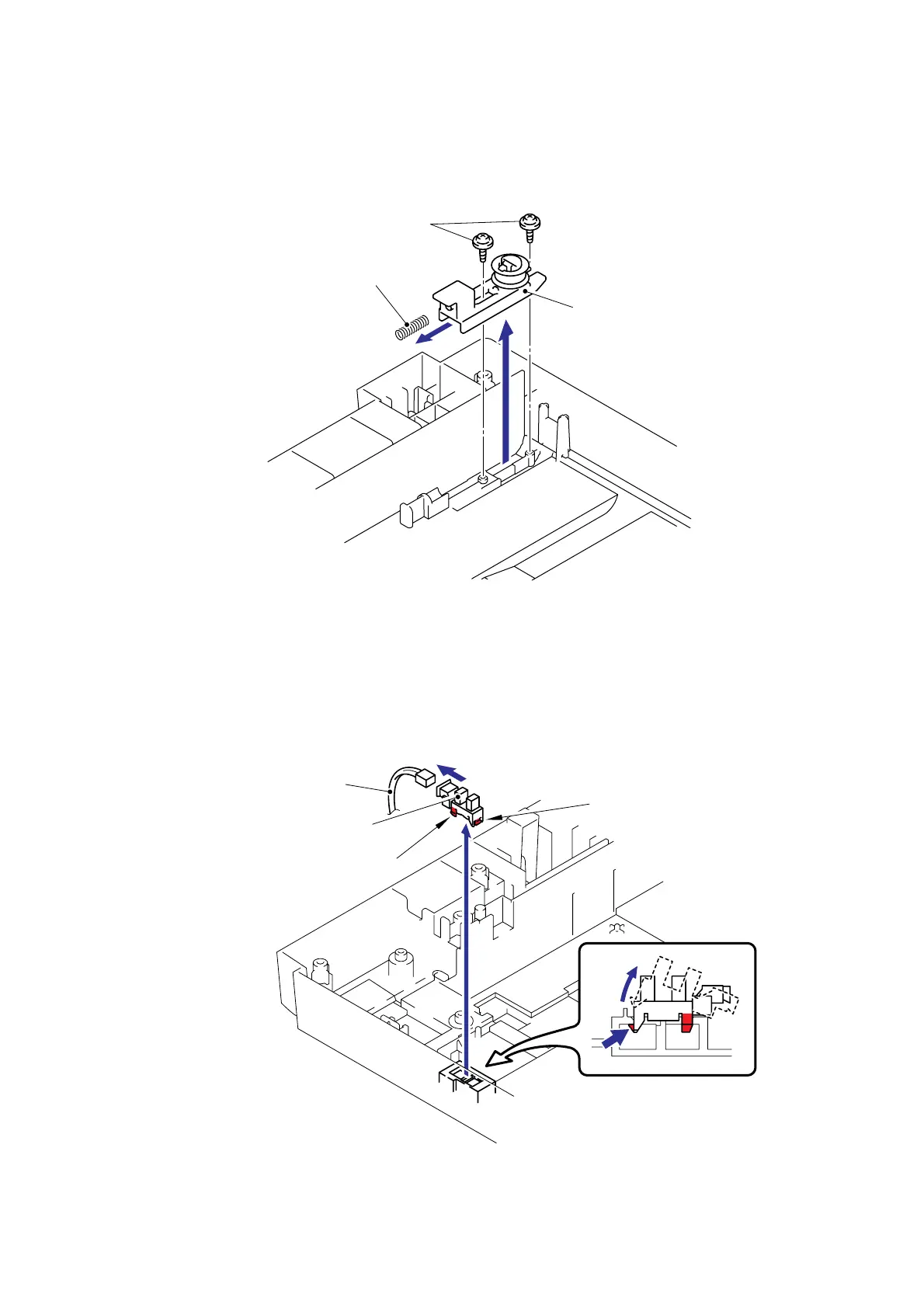

9.10.7 Pulley ASSY
(1) Remove the two B M3x6 Taptite screws, and then remove the Pulley ASSY.
(2) Remove the Pulley spring.
Fig. 5-159
9.10.8 Home Position Sensor
(1) Release the Hooks and remove the Home position sensor.
(2) Disconnect the Connector of the Home position sensor harness from the Home position
sensor.
Fig. 5-160
Pulley ASSY
Pulley spring
1
2
<Back side>
Taptite B M3x6
2
1
Connector
(Home position sensor harness)
Home position sensor
Hook
Hook
<Back side>
