9.8.37 Pressure Roller
(1) Turn the Document cover upside down. Remove the two cup B M3x10 Taptite screws.
(2) Remove the Rear sensor cover from the Document cover.

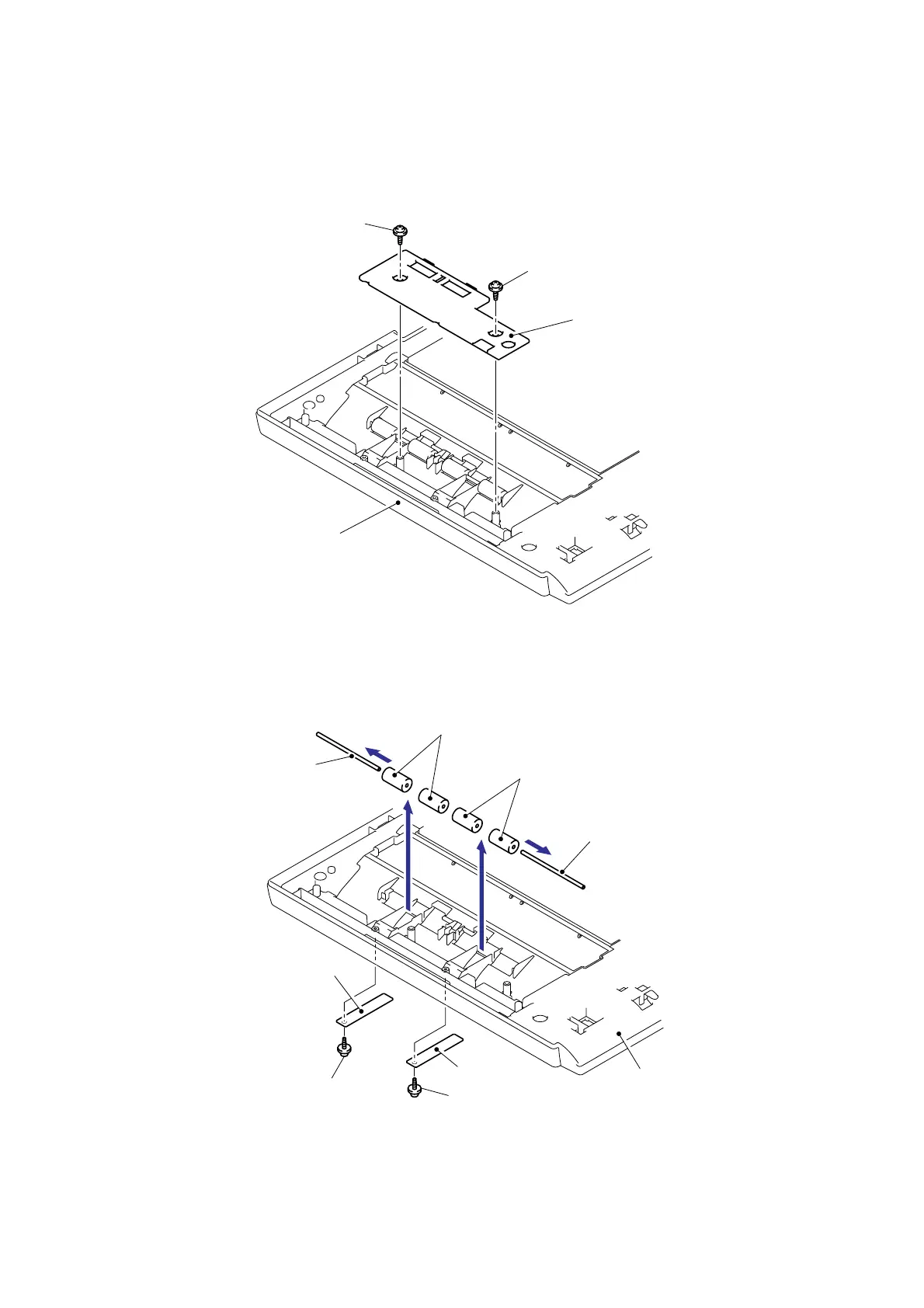

Fig. 5-96
(3) Remove the two cup B M3x10 Taptite screws, and then remove the two LF springs, four
Pressure rollers and two Pressure roller shafts S.
Fig. 5-97
Taptite cup B M3x10
Taptite cup B M3x10
Document cover
Rear sensor cover
Pressure rollers
Pressure rollers
Pressure roller shaft S
Document cover
Taptite cup B M3x10
LF spring
LF spring
Taptite cup B M3x10
Pressure roller shaft S
