Brother MFC-8370DN Service Manual

5-202
Confidential
9.36 LVPS PCB Unit
(1) Turn the machine upside down.
(2) Remove the Screw pan (S/P washer) M3.5x6SR, and remove the NCU FG harness.
(3) Remove the five bind B M4x12 Taptite screws, and then remove the Base plate LV.
(4) Remove the Screw pan (S/P washer) M3.5x6SR from the Base plate LV to remove the
LVPS PCB unit terminal.

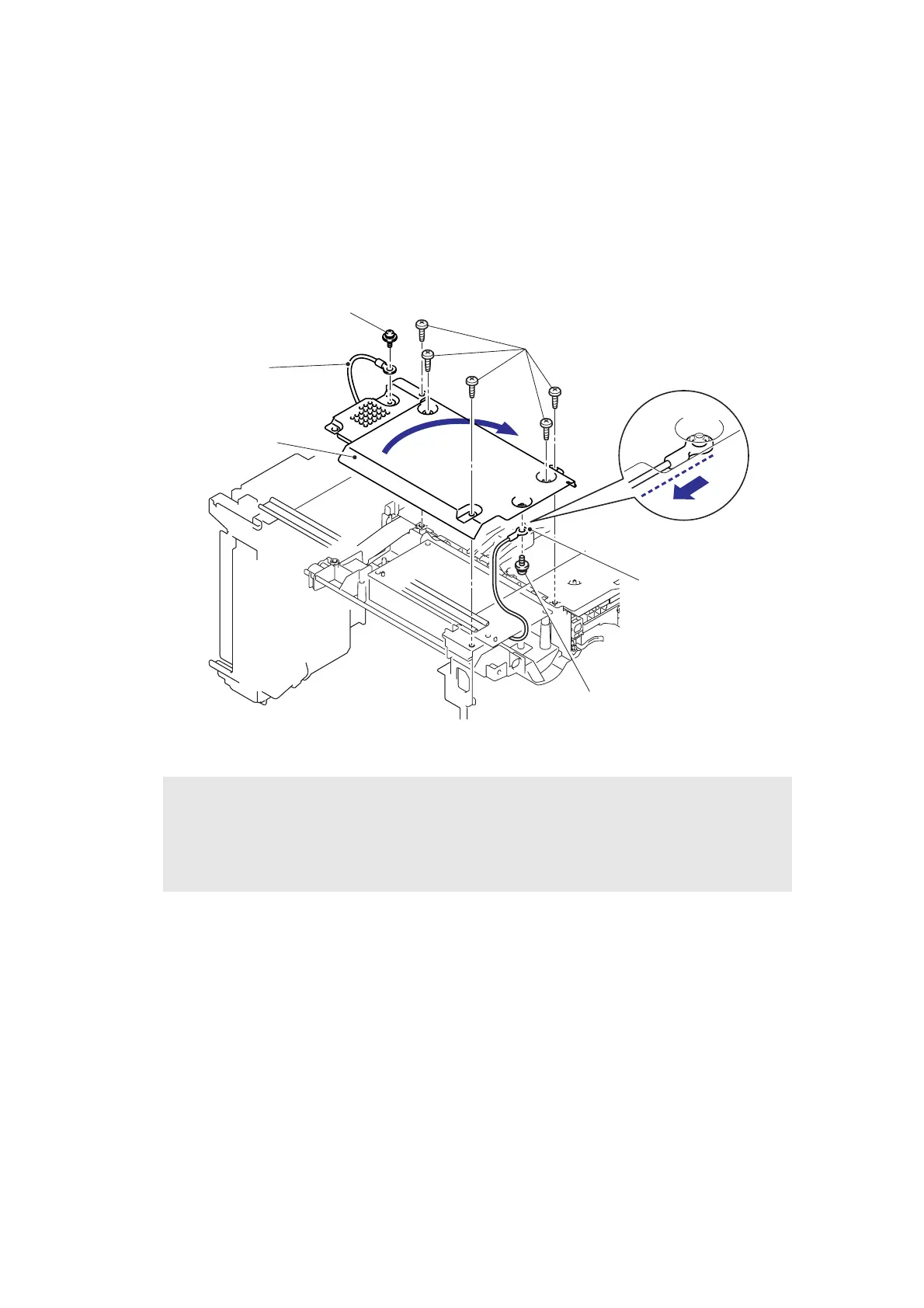

Fig. 5-247
Assembling Note:
• When assembling the Base plate LV, Direct the cable side of the LVPS PCB unit
terminal to the backward (Fig. 5-247: To the direction of an arrow of the enlarged
illustration.), and align parallel the LVPS PCB unit terminal with the side of the Base
plate LV.
LVPS PCB unit terminal
Screw pan (S/P washer) M3.5x6SR
Screw pan (S/P washer) M3.5x6SR
Taptite bind B M4x12
Base plate LV
<Back side>
NCU FG harmess
