Brother MFC-8370DN - Frame L Assy

5-212
Confidential
9.42 FRAME L ASSY
(1) Remove the Insulation sheet.
(2) Pull out the flat cable from the Ferrite core.
(3) Remove the Main PCB sheet.

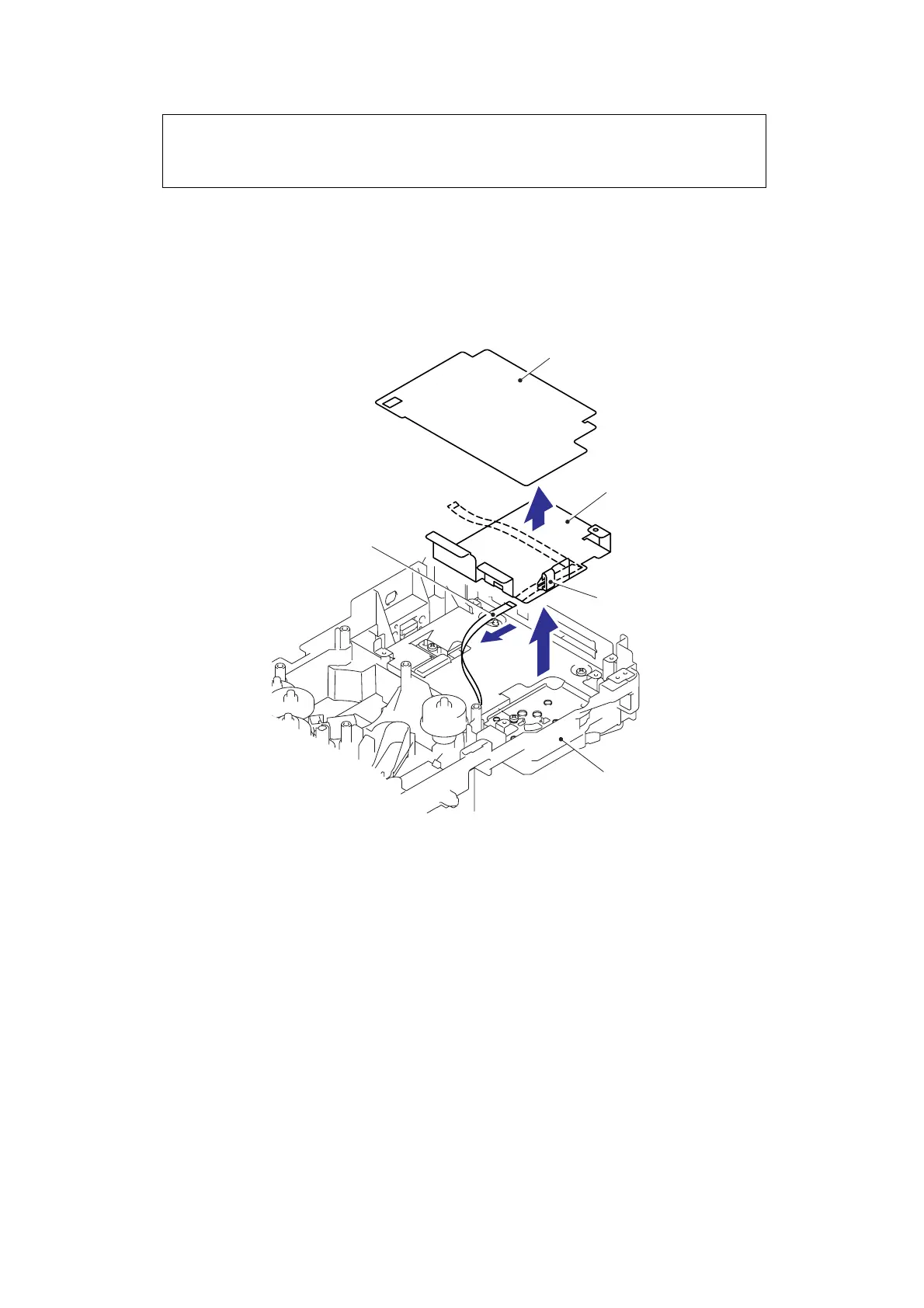

Fig. 5-263
Note:
The procedure for disassembling the Frame L after
"9.19 Main PCB" is described below.
Insulation sheet
Relay front PCB ASSY
(Flat cable)
Ferrite core
Frame L
Main PCB sheet
