Brother MFC-8370DN - Hinge Arm R; Hinge Base R

5-63
Confidential

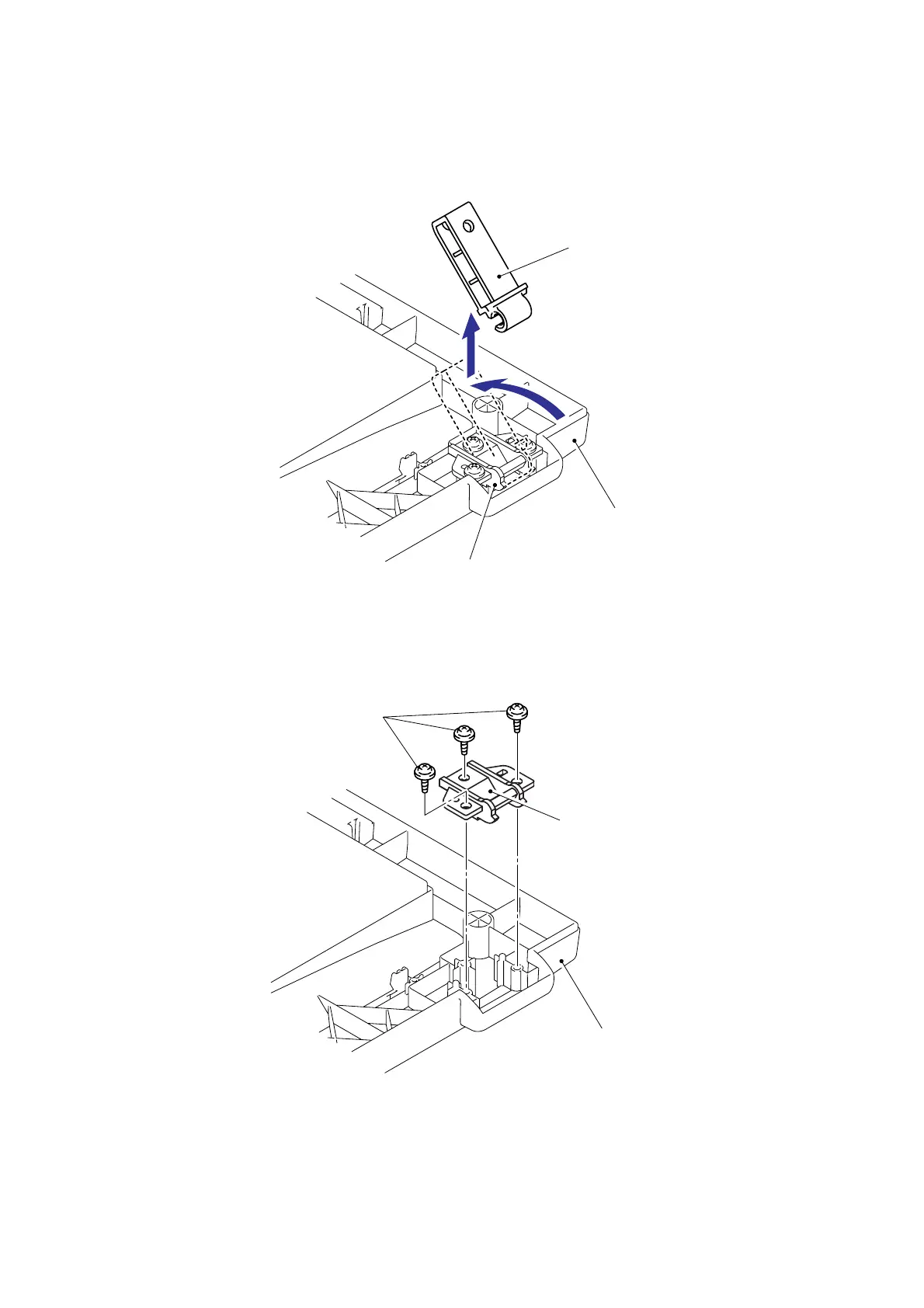

9.8.2 Hinge Arm R
(1) Turn the Document cover LGL upside down.
Remove the Hinge arm R from the Hinge base R.
Fig. 5-40
9.8.3 Hinge Base R
(1) Remove the three cup B M3x10 Taptite screws, and then remove the Hinge base R.
Fig. 5-41
<Lower side>
Hinge arm R
Hinge base R
Document cover LGL
1b
1a
Taptite cup B M3x10
Hinge base R
Document cover LGL
<Lower side>
