4-28
Confidential

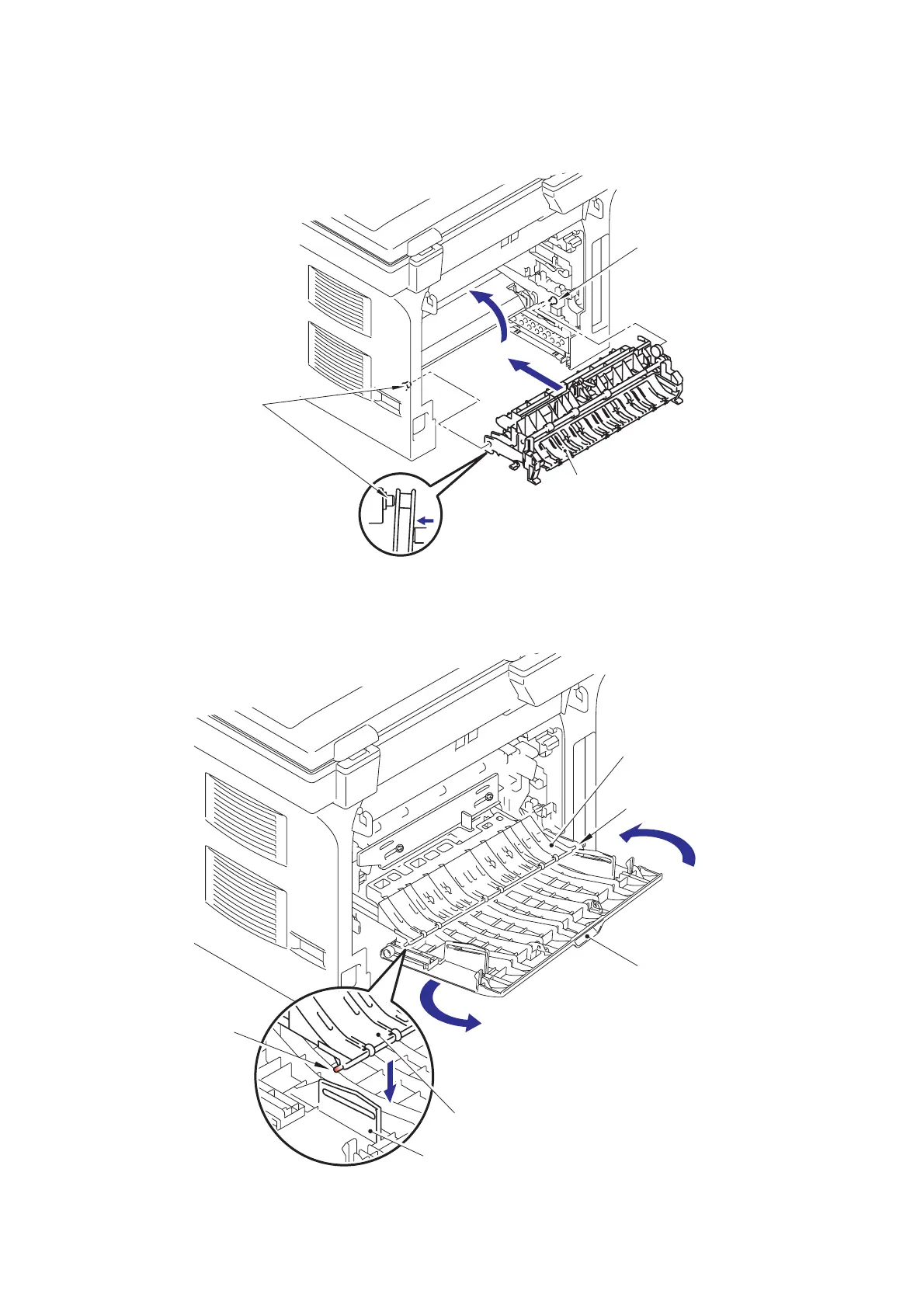

(28) Catch the Arm of the Rear chute ASSY onto the Pin of the machine body and install the
Rear chute ASSY.
Fig. 4-42
(29) Catch the Pins of the Outer chute ASSY onto the Back cover.
Fig. 4-43
28c
28b
28a
Pin
Pin
Rear chute ASSY
29a
29a
Pin
Pin
Back cover
Back cover
Outer chute ASSY
Outer chute ASSY
29b29b
