4-55
Confidential

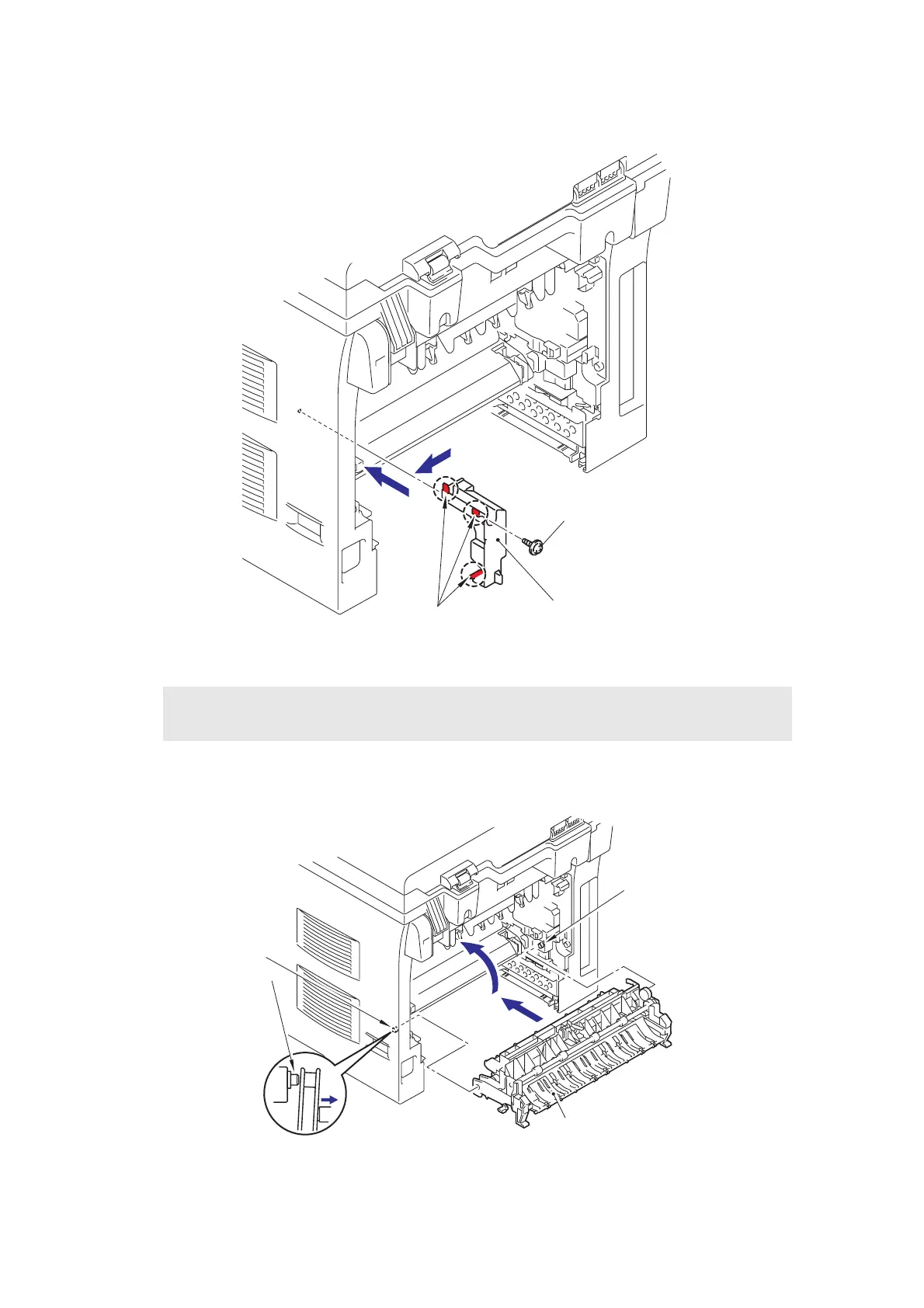

(29) Secure the FU harness cover 1 with the pan B M4x20 Taptite screw.
Fig. 4-86
(30) Catch the Arm of the Rear chute ASSY onto the Pin of the machine body and install the
Rear chute ASSY.
Fig. 4-87
Note :
• Do not sandwich the harness of the heater terminal by the FU harness cover 1.
29b
29a
Hooks
FU harness cover 1
Taptite pan B M4x20
31c
30b
30a
30c
Pin
Pin
Rear chute ASSY
