Brother MFC-8370DN Service Manual

4-63
Confidential

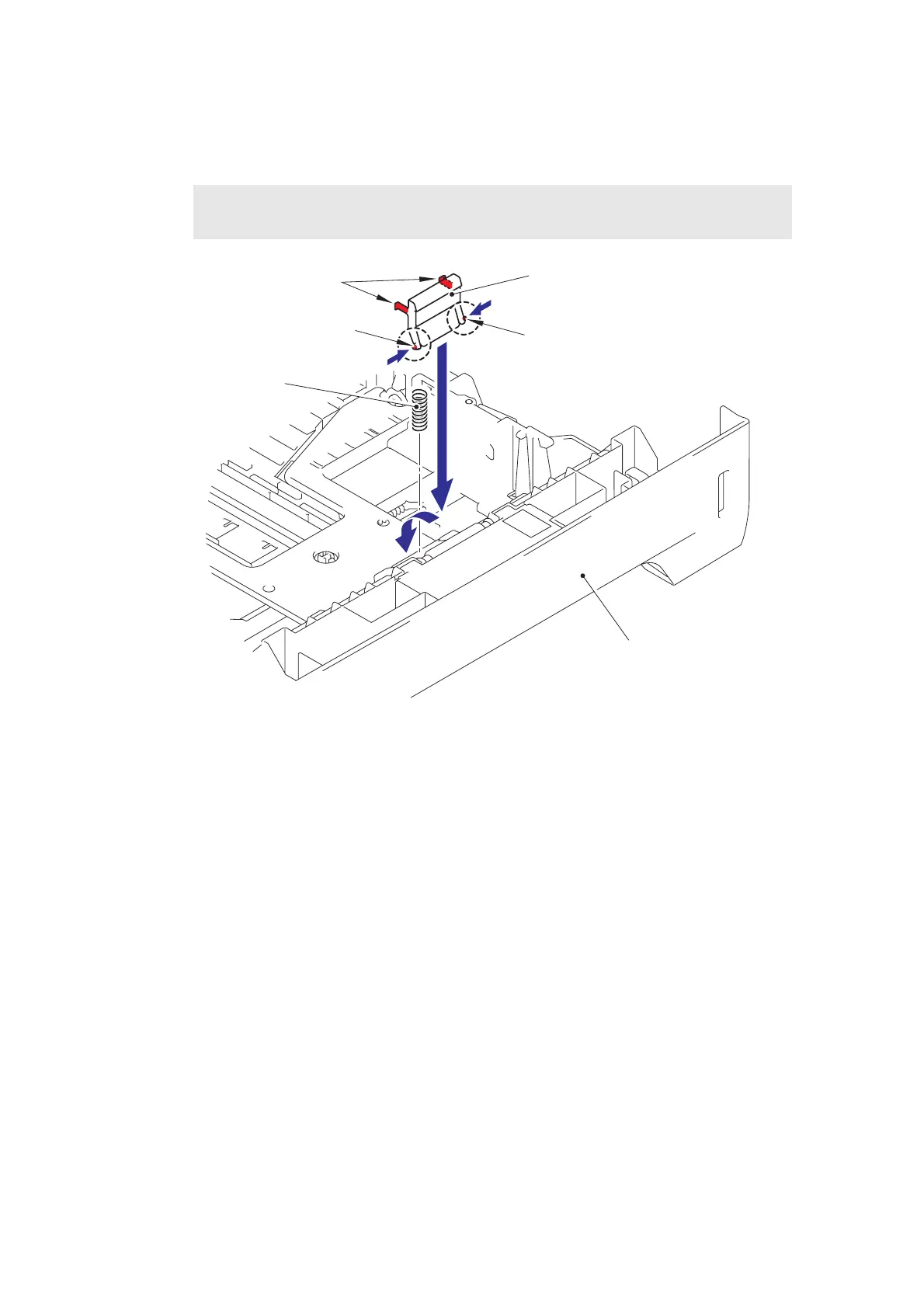

(4) Set the Separation pad spring.
(5) Put the Hooks of the Separation pad ASSY into the Paper tray, and turn the Separation
pad ASSY to the direction of the arrow 6c to catch the Hooks into the Paper tray.
Fig. 4-95
(6) Put the Paper tray into the machine.
* Reset the count of the PF Kit after part replacement.
Note :
• Check that the Separation pad spring is assembled correctly.
6b
6a
6c
6b
Hooks
Hook
Hook
Separation pad ASSY
Separation pad spring
Paper tray
