5-30
Confidential
23

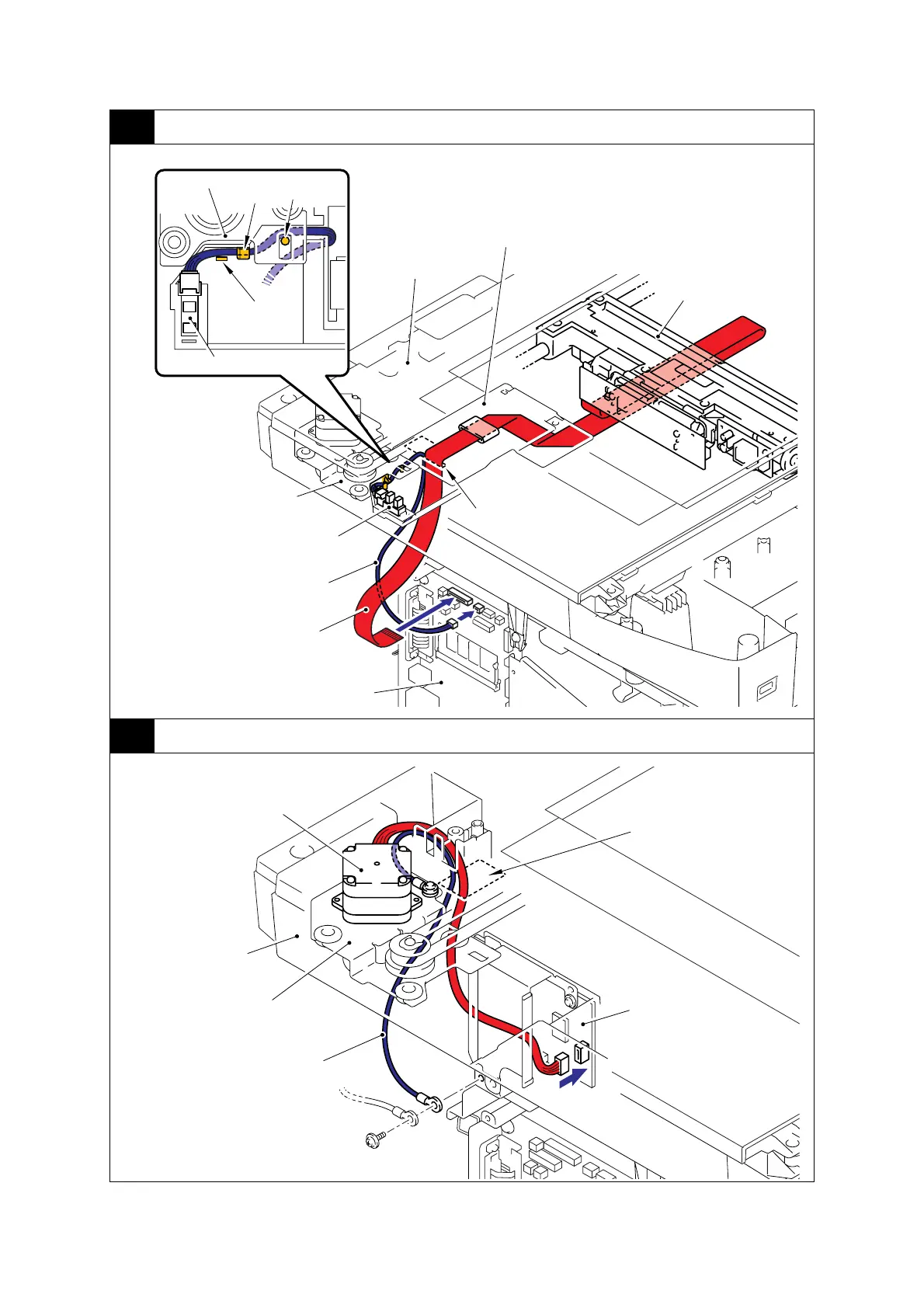

Document scanner unit (CCD module, Home position sensor) (CCD model)
24
Document scanner unit (Scanner motor, FB FG harness) (CCD model)
Main PCB
CCD module
FFC cable
Home position sensor
Home position sensor
Drive plate ASSY
Drive plate ASSY
Home position sensor harness
FFC plate
Hole
Scanner unit
Hook
Pin
Lib
Drive plate ASSY
Drive PCB
Scanner unit
Scanner motor FB
FB FG harness
Hole
