5-39
Confidential
39

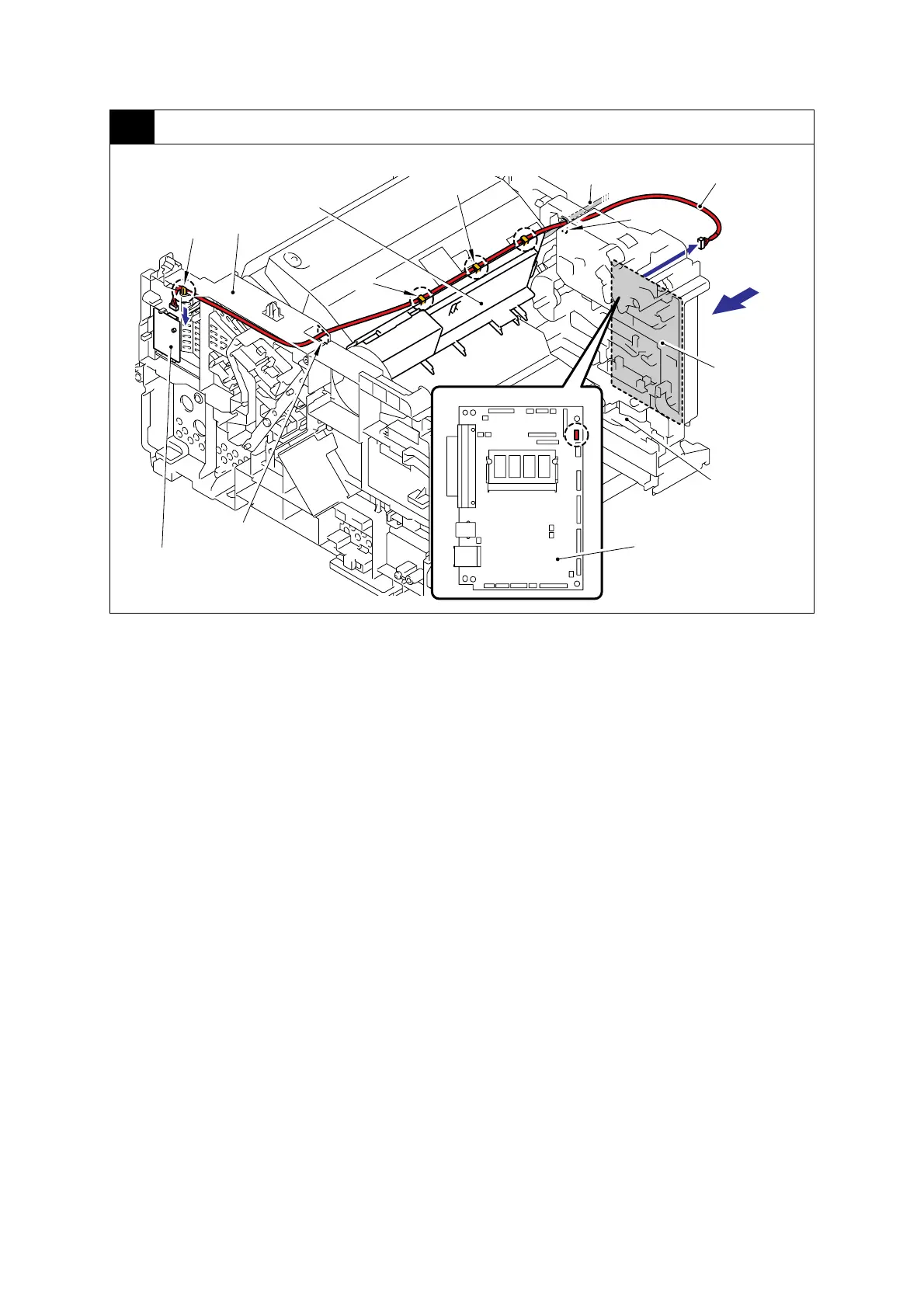

Wireless LAN PCB (PCB T60H929.00 ASSY 02) (CCD model only)
Hook
Hook
Hook
Hole
Hole
Frame R
Air duct
Frame L
Wireless LAN PCB
(PCB T60H929 ASSY 02)
Wireless LAN PCB harness
LD harness
Main PCB
Main PCB
<A view>
<A view>
