5-158
Confidential
(6) Remove the two cup S M3x6 SR Taptite screws, and then remove the NCU PCB ASSY.

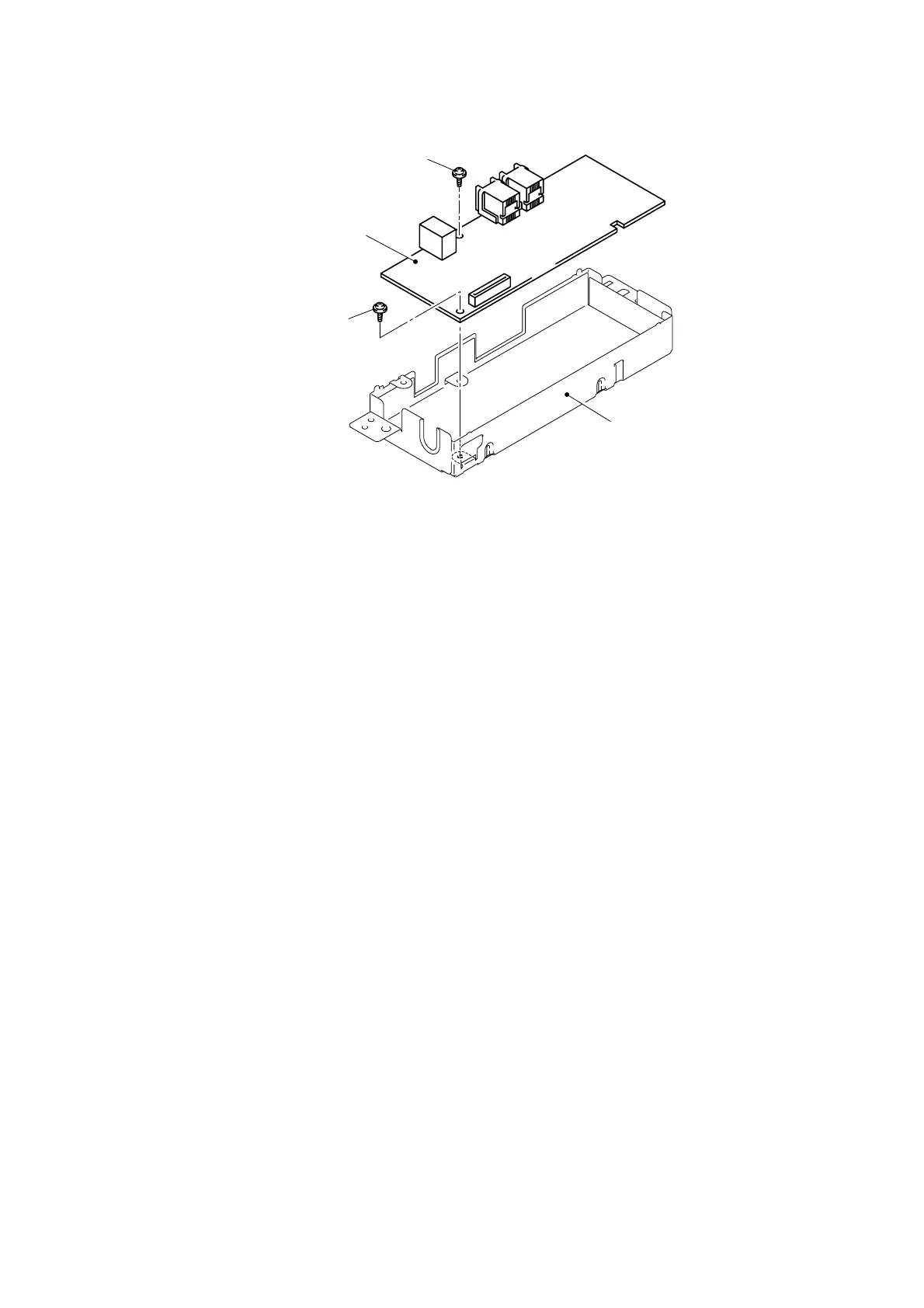

Fig. 5-183
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
NCU PCB ASSY
NCU shield plate
