5-189
Confidential

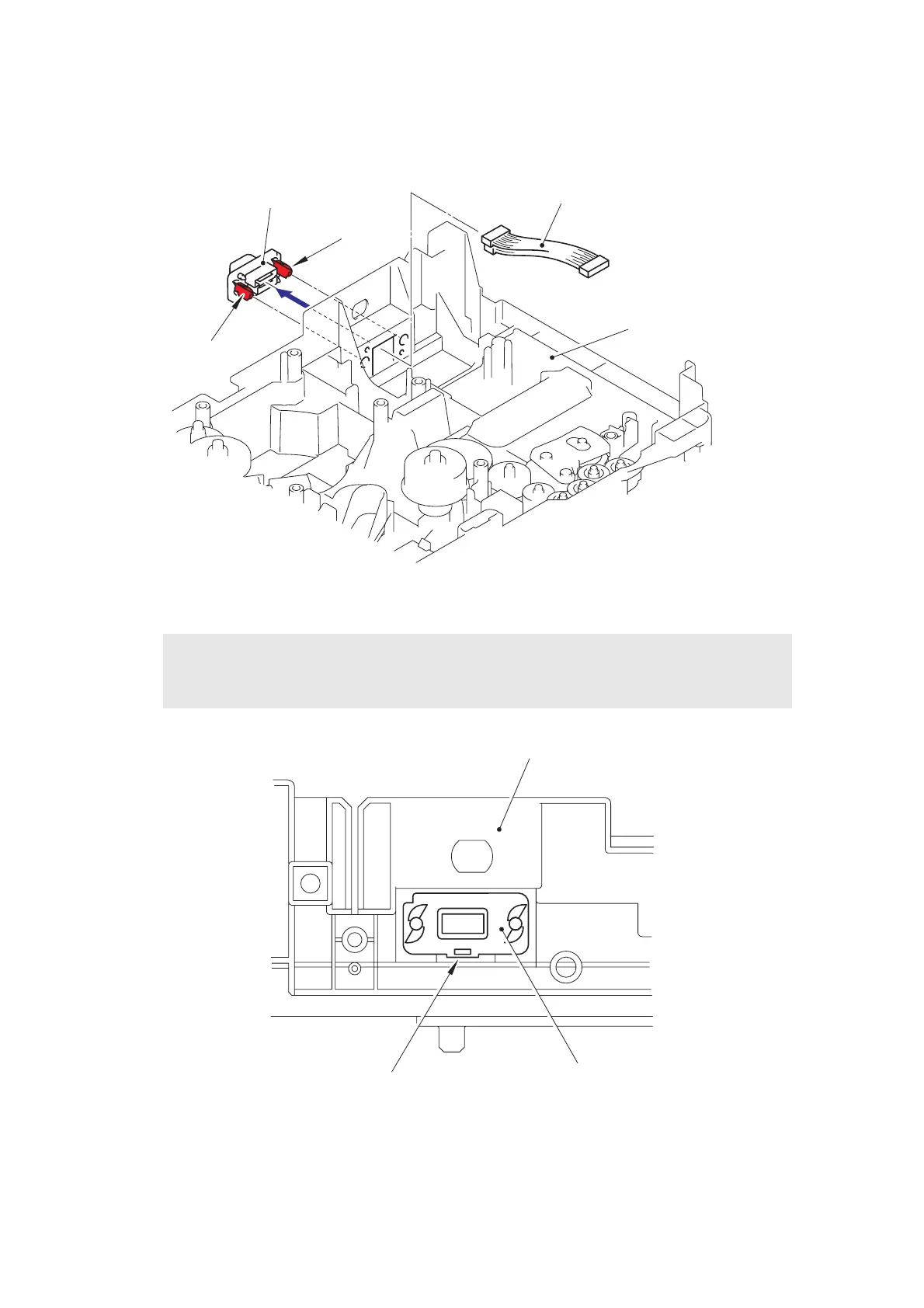

(2) Remove the Connector harness.
(3) Disconnect the LT connector while pressing the Hook inwards.
Fig. 5-222
Fig. 5-223
Assembling Note:
• When assembling the LT connector, ensure that its direction is correct referring to the
figure below.
Connector harness
Frame L
Hook
LT connector
Hook
Frame L
LT connector
Boss
