Brother MFC-8370DN Service Manual

6-8
Confidential
■ EEPROM Customizing of Main PCB (Maintenance Mode: Code 74)
Refer to “4.18 EEPROM Customizing” in Chapter 7, and perform the EEPROM
Customizing.
For models in France and surrounding countries, Pan-Nordic, Oceania or Iberia,
implement the setting for Code 74 in Maintenance mode first. Then, implement more
detailed settings for Code 52.
■ EEPROM Parameter Initialization of Main PCB
(Maintenance Mode: Code 01)
Refer to “4.1 EEPROM Parameter Initialization” in Chapter 7, and perform the
EEPROM parameter Initialization of main PCB.
■ Operational Check of Control Panel Button (Maintenance Mode: Code 13)
Refer to “4.8 Operational Check of Control Panel PCB” in Chapter 7, and perform the
operational check of control panel PCB.
■ Operational Check of Sensors (Maintenance Mode: Code 32)
Refer to “4.10 Sensor Operational Check” in Chapter 7, and perform the operational
check of sensors.
■ Acquisition of White Level Data and Set the CCD Scanner Area
(Maintenance Mode: Code 55)
Refer to “4.16 Acquisition of White Level Data and CCD Scanner Area Setting” in
Chapter 7, and perform the acquisition of white level data and CCD scanner area
setting.
■ Setting the Serial Number
(1) Connect the computer to the machine with the USB cable.

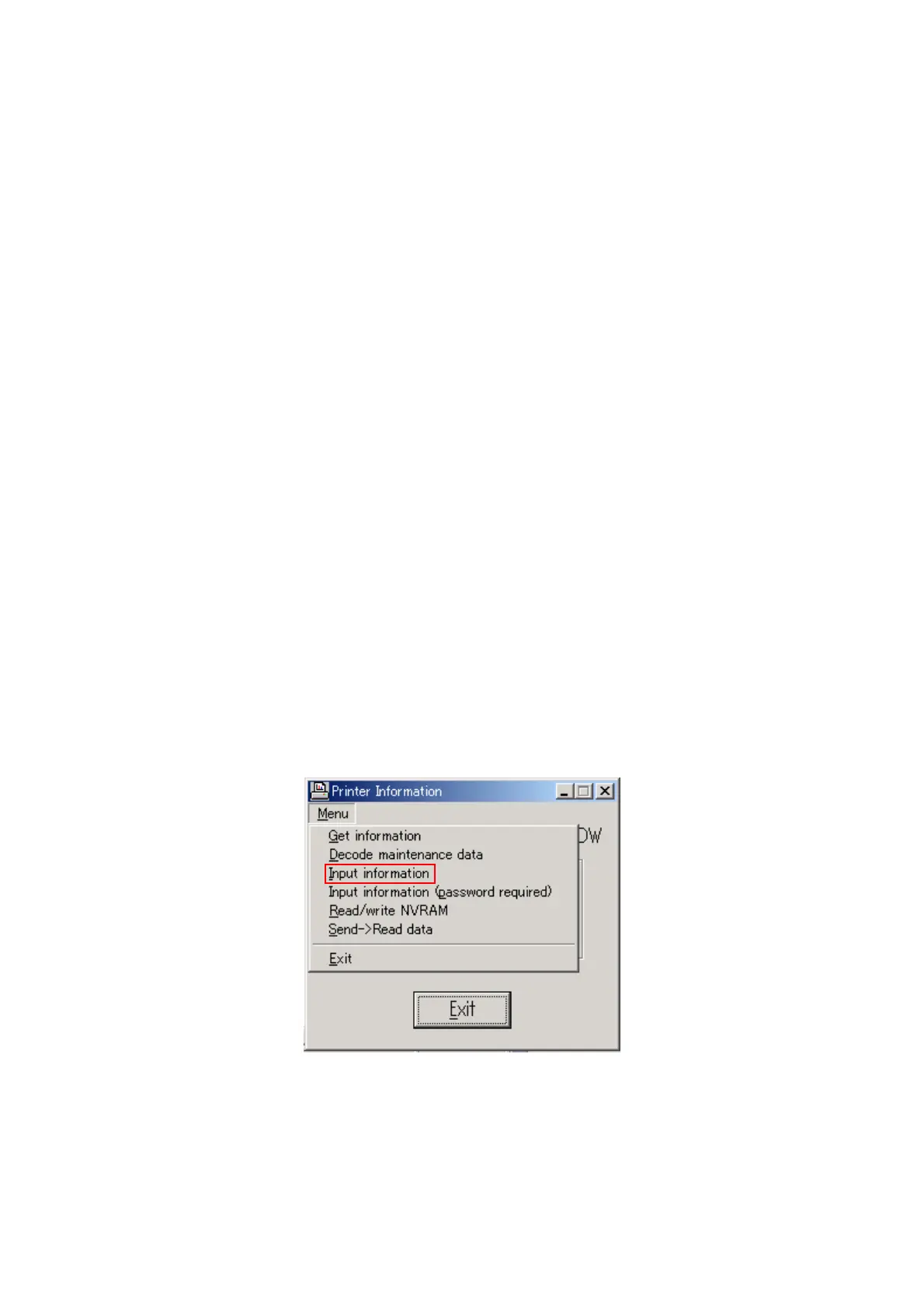

(2) Double-click the brmainte.exe file (maintenance utility) which has been copied in
the folder to start. Select “Input Information” from Menu. Select the applicable
model name.
