Brother MFC-8370DN Service Manual

2-11
Confidential
 CIS model
The automatic document feeder (ADF) of the CIS model consists of the pick-up roller,
separation roller, paper feed rollers 1/2/3, eject roller, ADF motor, switch back sensor,
document rear sensor, document front sensors 1/2 and document eject sensor.
For further details on the sensors, see 3.6 Sensors position.

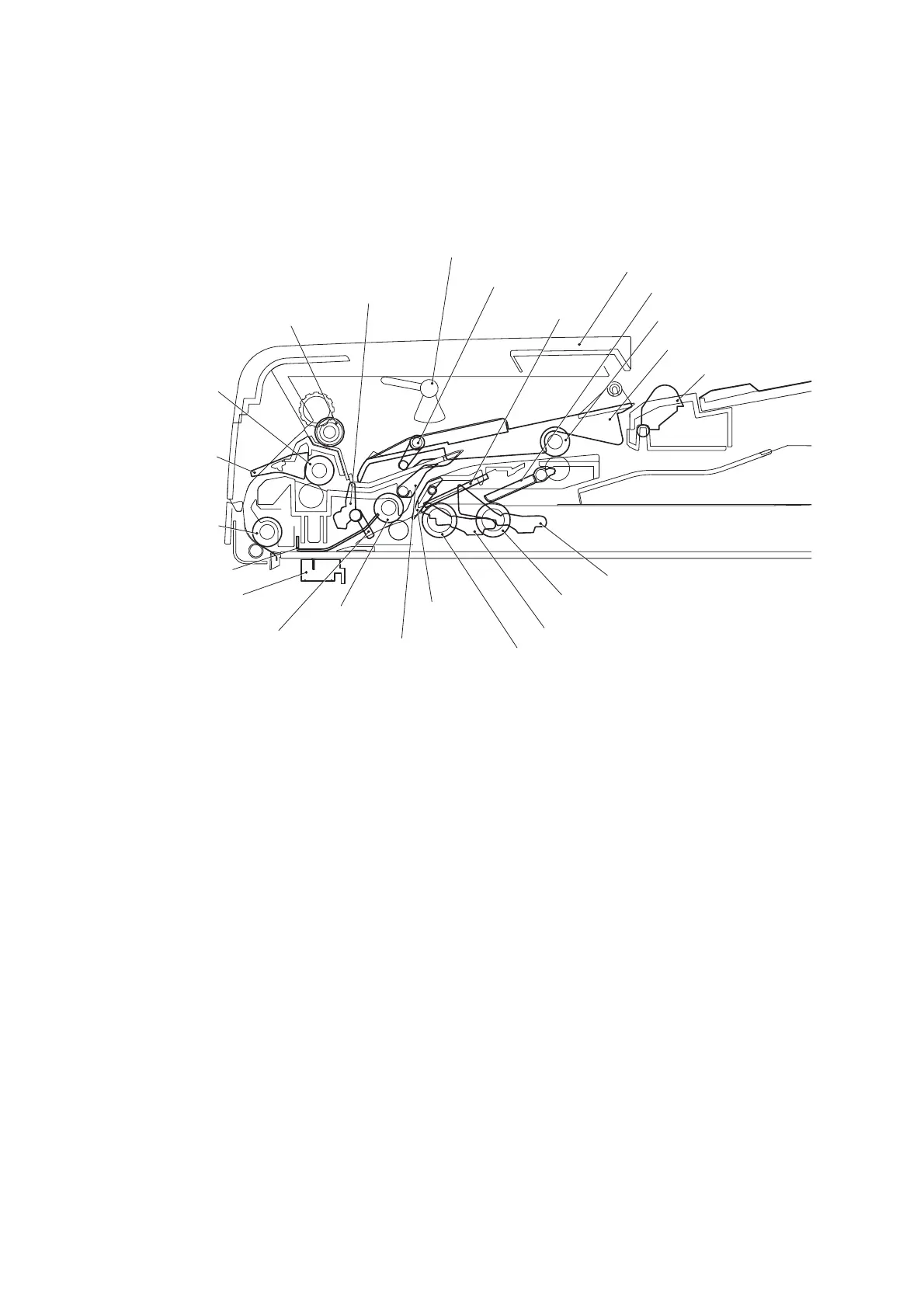

Fig. 2-10
The duplex scanning mechanism allows you to use the following two types of scanning,
“ADF scanning” and “document glass scanning”. These two scanning methods are
switched depending on whether the document front sensor 1 detects the document or not
when starting scanning.
However, in the case of the CCD model, there is the case that the “document glass
scanning” is given priority to over by a state of the document cover sensor (described
later).
Document front actuator 1
Document front actuator 2
Feed roller
Separation roller
Front flap
Document rear actuator
Feed roller 2
Switch back actuator
Switch back flap A
Feed roller 3
Switch back roller
Ejection flap
Document eject actuator
ADF cover
ADF cover open actuator
Separation flap cam
Exit roller
CIS unit
Document hold
Feed roller 1
Switch back flap B
Separation pad
Nip piece

Brother MFC-8370DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Input color depth	48 bit
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4, 9, 16, 25
Copy speed (black, normal quality, A4)	28 cpm
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	20 sheets
Display	LCD
Product color	Grey, White
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Card reader integrated	-
Sound power level (standby)	30 dB
Sound pressure level (printing)	56 dB
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Dimensions (WxDxH)	531 x 451 x 475 mm
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	Scan
Power consumption (standby)	85 W
Power consumption (average operating)	680 W
Package weight	21100 g
Digital sender	No
Maximum duty cycle	- pages per month

Weight and Dimensions

Depth	443 mm
Width	390 mm
Height	442 mm
