Brother MFC-9440CN Service Manual

Confidential
3-18

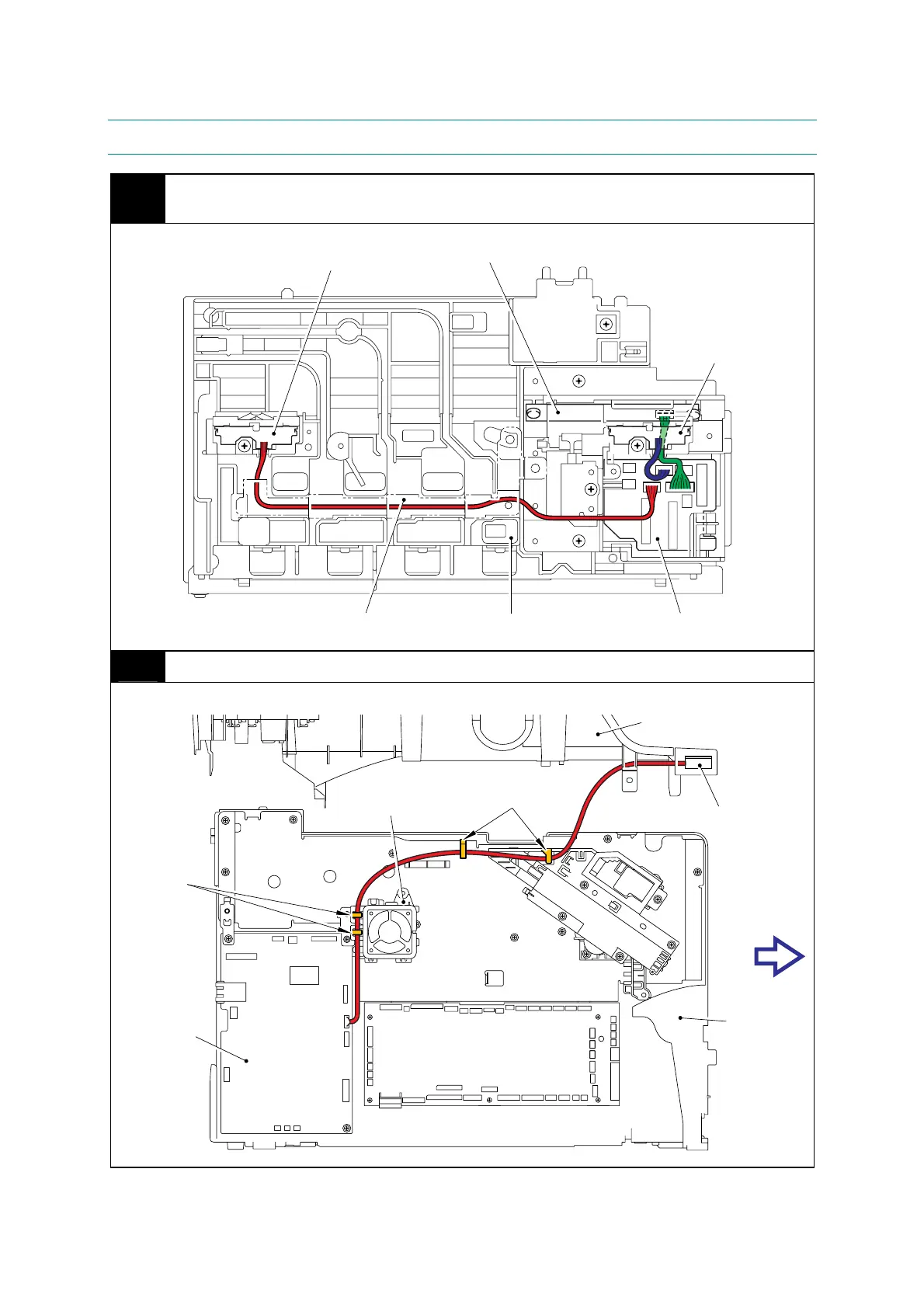

6. HARNESS ROUTING
1
Transfer HVPS PCB unit
(Registration-mark sensor PCB ASSY 1, 2, Density sensor)
2
USB host relay PCB ASSY (MFC-9440CN/ 9450CDN only)
Registration-mark sensor PCB ASSY 2
Registration-mark
sensor PCB ASSY 1
Density sensor
Ground plate 2
Transfer HVPS PCB unit
Registration relay PCB ASSY
Joint cover ASSY
USB host relay PCB ASSY
Side frame L
Clamps
Fan motor holder 40
Front
Hooks
Main PCB ASSY
