8.39 Drum Drive ASSY/ Drum Phase Sensor PCB ASSY 1, 2
(1) Remove the Engine insulation sheet from the Harness shield plate, which is fixed with a
two-sided adhesive tape.

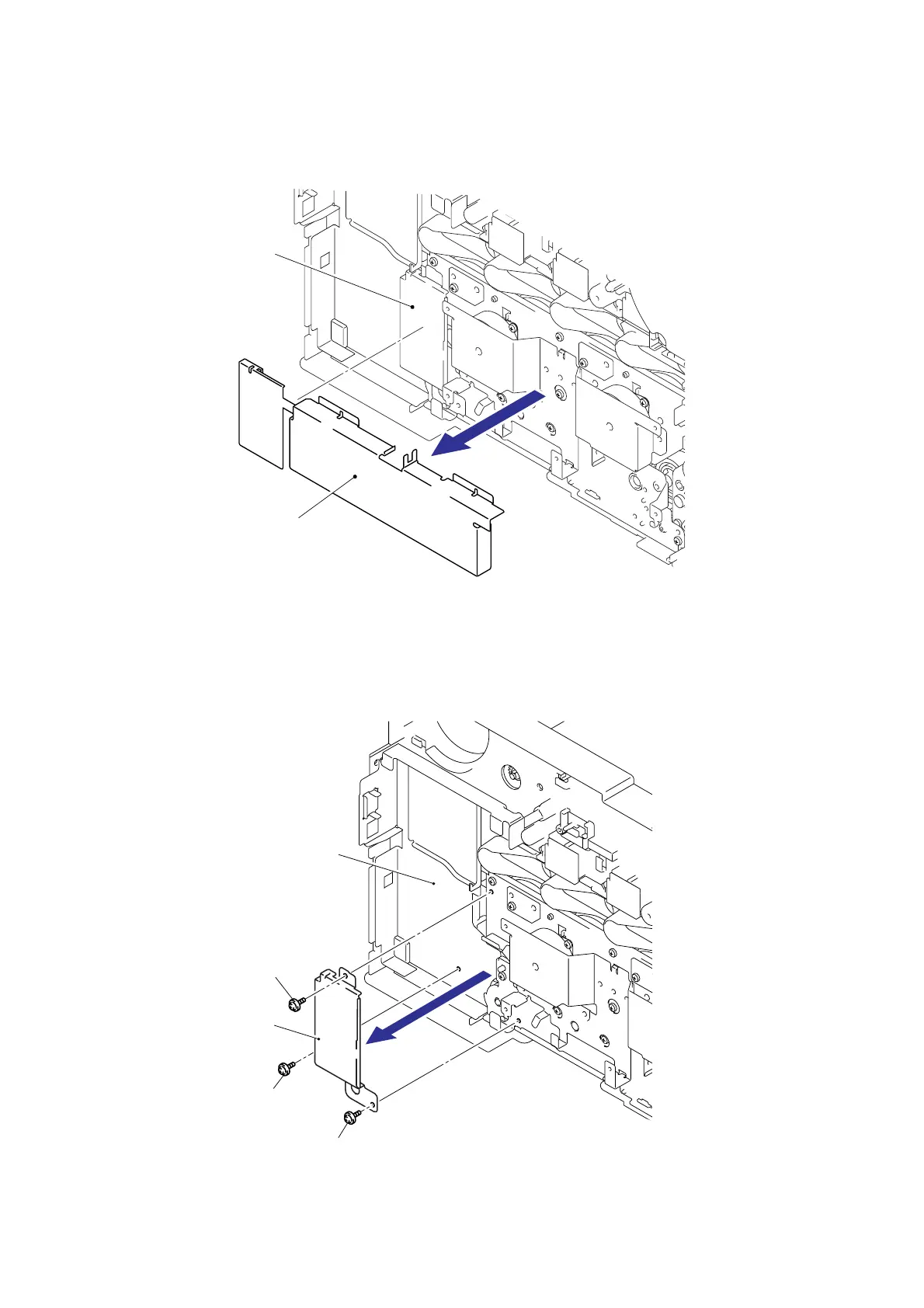

Fig. 3-173
(2) Remove the three cup S M3x6 Taptite screws, and then remove the Harness shield plate
from the Frame unit.
Fig. 3-174
Harness shield plate
Engine insulation sheet
Frame unit
Harness shield plate
<Left side>
<Left side>
Taptite, cup S M3x6
Taptite, cup S M3x6
Taptite, cup S M3x6
