Brother MFC-9440CN - Back Cover ASSY

Confidential
3-43
8.8 Back Cover ASSY

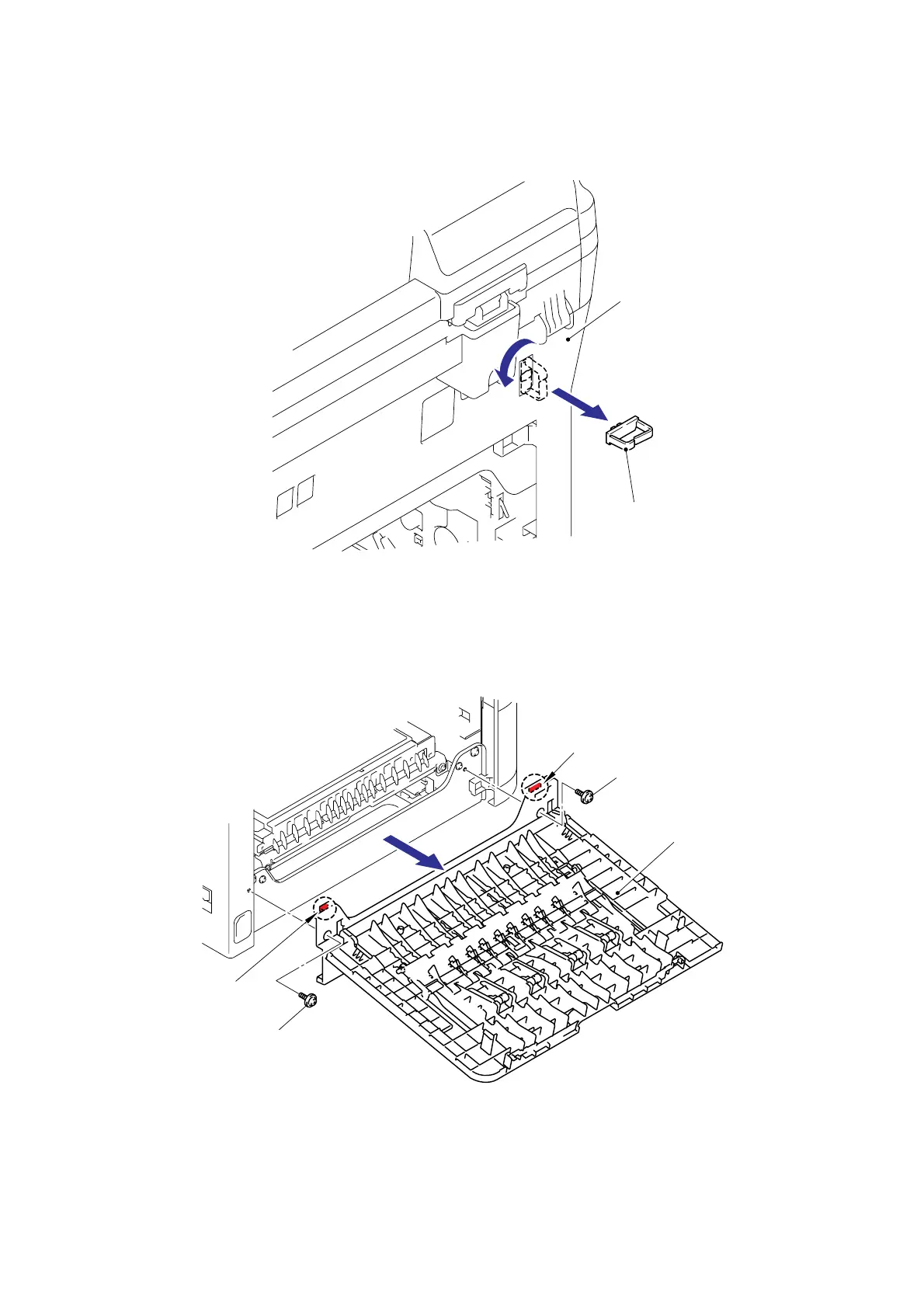

(1) Turn the Cord holder 90 degrees and remove it from the Joint cover ASSY.
Fig. 3-26
(2) Remove the two cup S M3x8 Taptite screws, and then remove the Back cover ASSY.
Fig. 3-27
<Back side>
Joint cover ASSY
Cord holder
1a
1b
Taptite, cup S M3x8
Back cover ASSY
Taptite, cup S M3x8
<Back side>
Hook
Hook
