8.52 Fuser Unit Fan (FU)
(1) Remove the Fuser unit fan (FU) from the Frame unit.

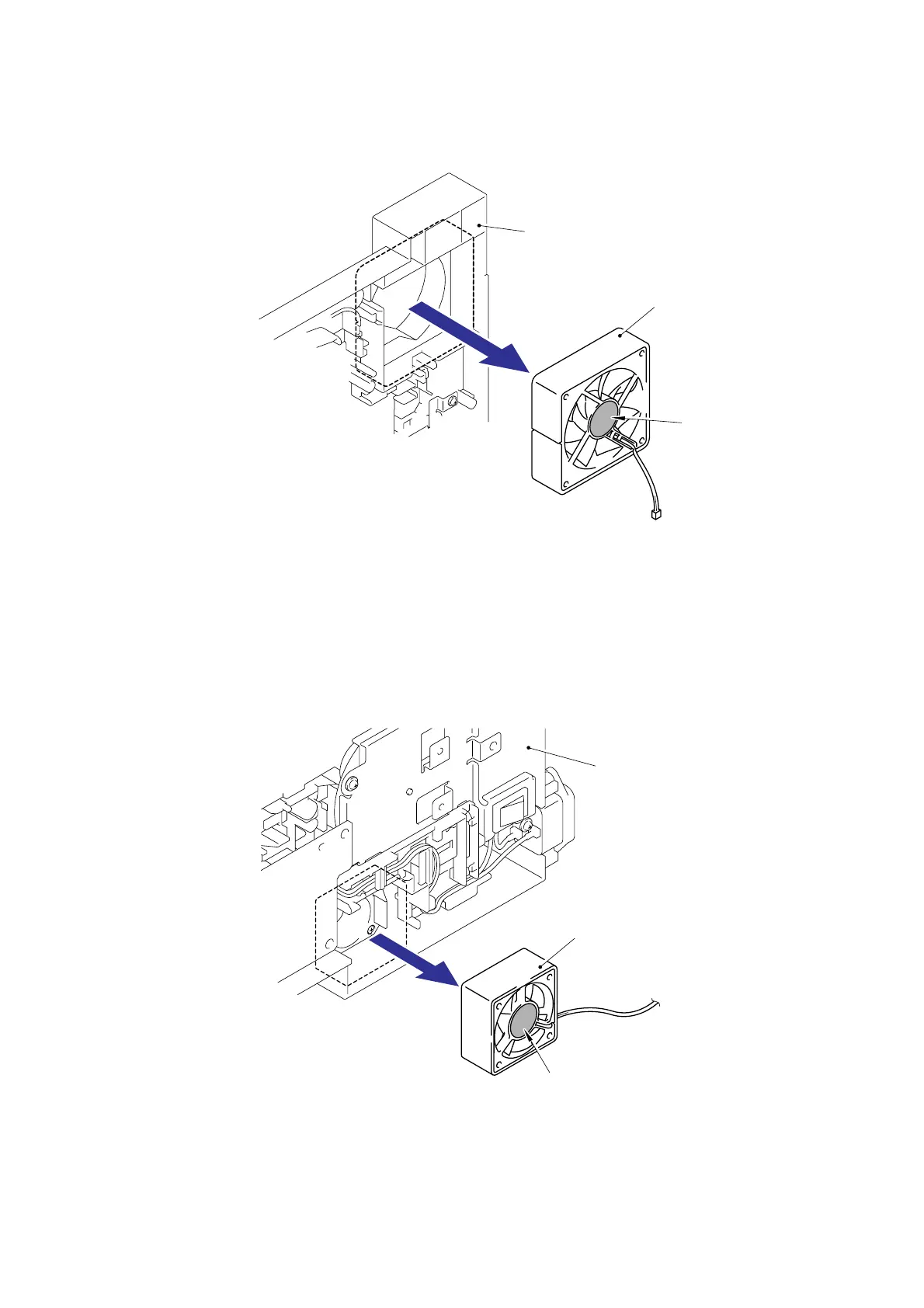

Fig. 3-210
Assembling Note:
When assembling the Fuser unit fan (FU), place it so that the attached Label faces
outwards.
8.53 LVPS Fan (PS)
(1) Remove the LVPS fan (PS) from the Frame unit.
Fig. 3-211
Assembling Note:
When assembling the LVPS fan (PS), place it so that the attached Label faces outwards.
Frame unit
Fuser unit fan (FU)
Frame unit
LVPS fan (PS)
<Right side>
<Right side>
Label
Label
