8.18 Document Scanner Unit

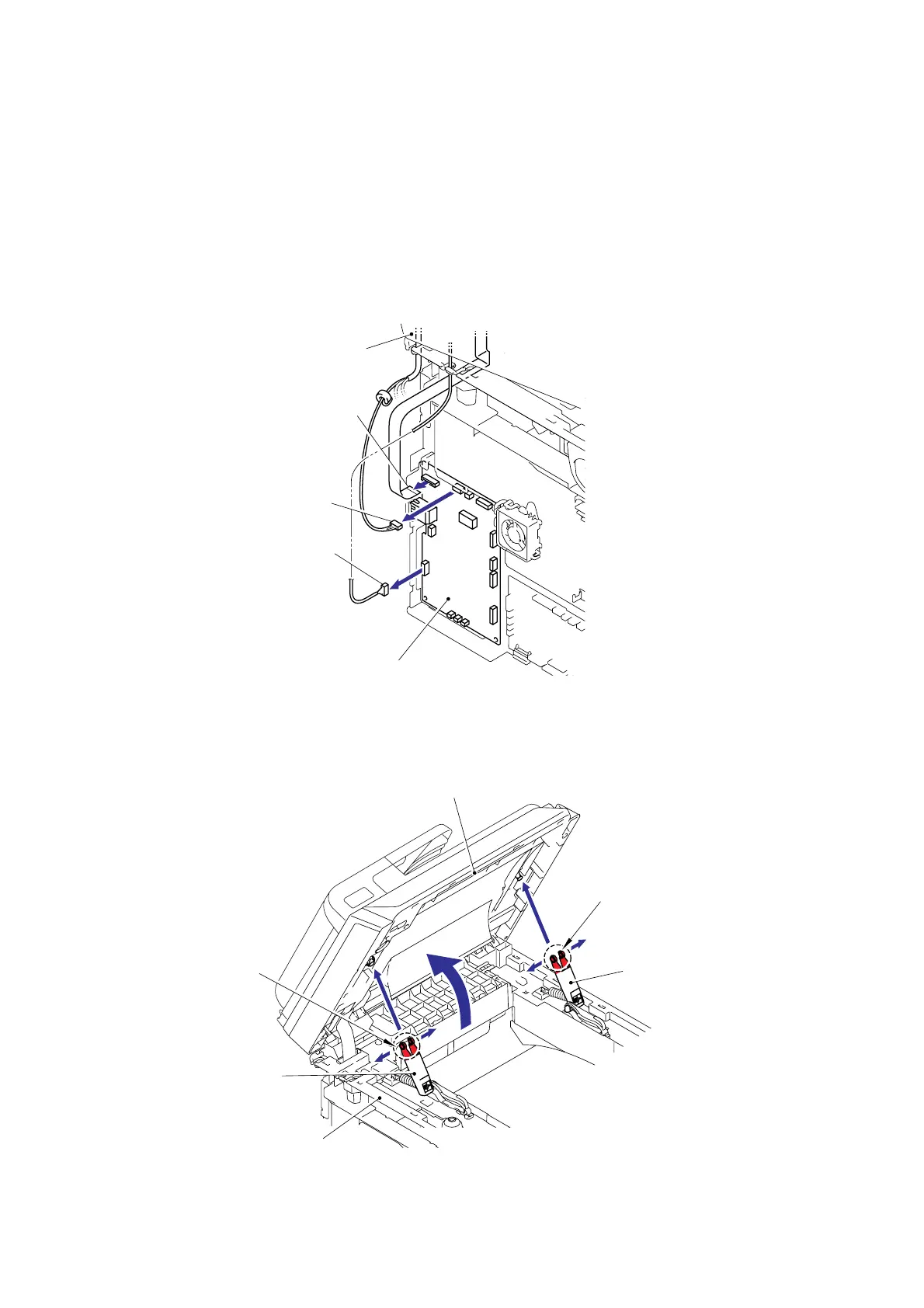

(1) Disconnect the Connector (CN14) from the Main PCB ASSY.
(2) Disconnect the Connector (CN21) and Flat cable (CN18) from the Main PCB ASSY.
Note:
- After disconnecting the flat cable(s), check that each cable is not damaged at its end or
short-circuited.
- When connecting the flat cable(s), do not insert it at an angle. After insertion, check that
the cable is not at an angle.
Fig. 3-53
(3) Open the Document scanner unit, and then release the Hooks of the Pull arms L and R
from the joint of the Document scanner unit.
Fig. 3-54
Hook
Pull arm R
Document scanner unit
Pull arm L
Joint cover ASSY
Hook
Main PCB ASSY
Document scanner unit
CN21
Flat cable (CN18)
CN14
