Brother MFC-9440CN - EL Electrode Spring L;R

Confidential
3-108
8.31 EL Electrode Spring L/R

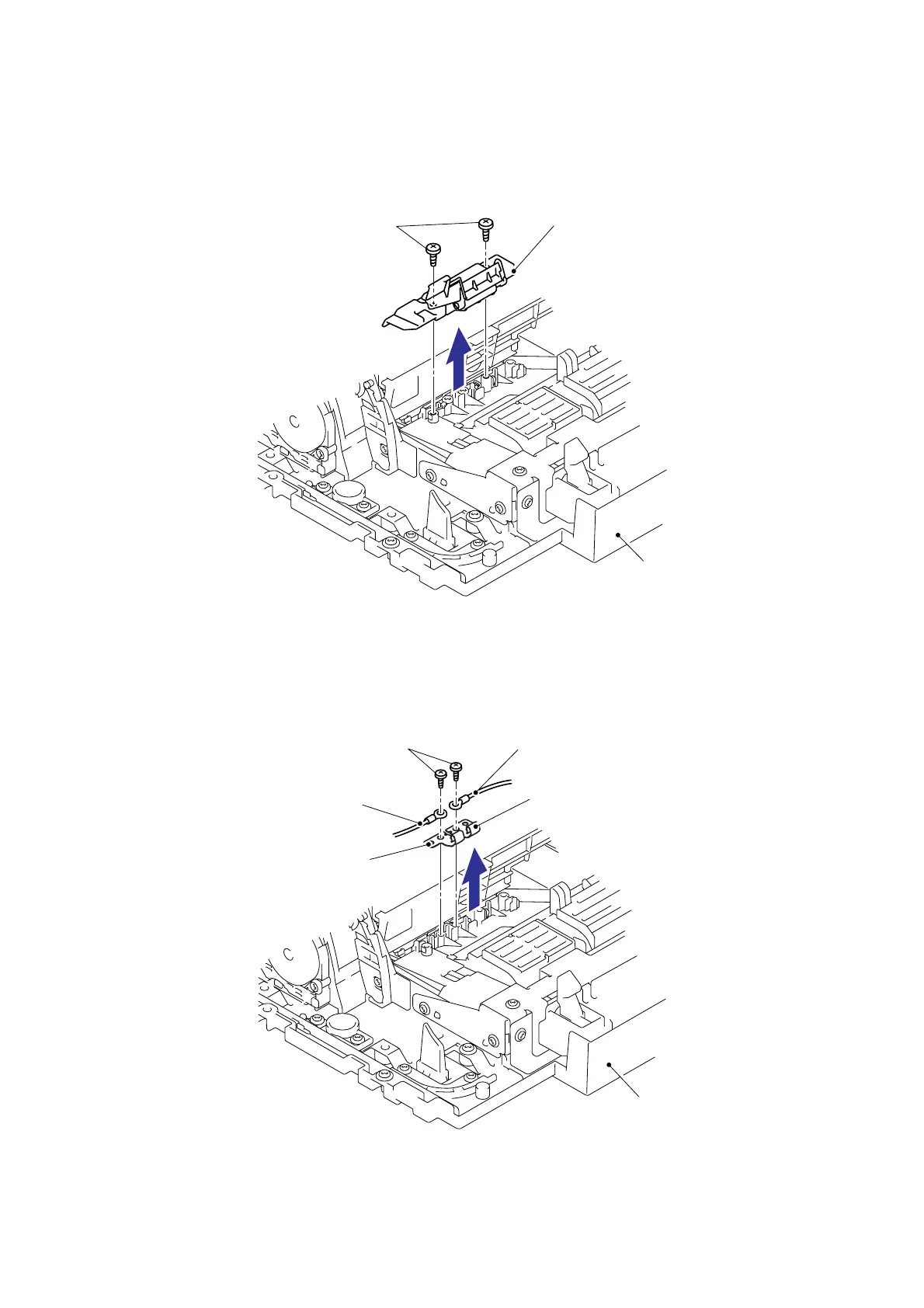

(1) Remove the two bind B M3x8 Taptite screws, and then remove the EL electrode spring
cover ASSY.
Fig. 3-143
(2) Remove the two bind B M3x8 Taptite screws, and then remove the EL spring harness ASSY
(white, red) and EL electrode spring L/R.
Fig. 3-144
EL electrode spring cover ASSY
Taptite, bind B M3X8
EL electrode spring R
EL electrode spring L
EL spring harness ASSY (white)
EL spring harness ASSY (red)
Taptite, bind B M3X8
Front door unit ASSY
Front door unit ASSY
