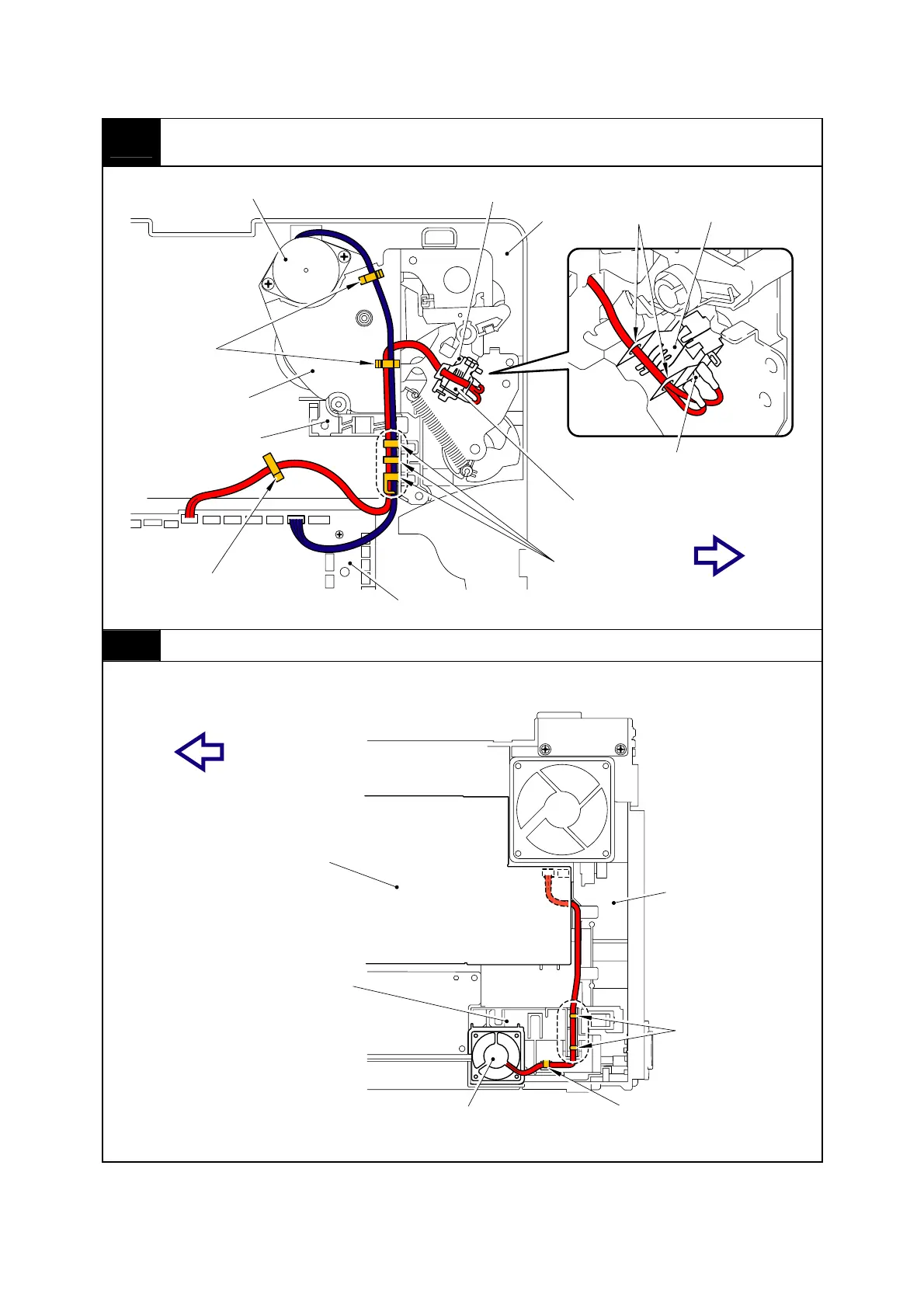

Develop press drive L ASSY
(Develop release motor ASSY, Front cover interlock switch ASSY)
8
LVPS fan (PS)
Develop press
drive L ASSY
Develop release motor ASSY
Clamps
Release drive holder
Clamp
Engine PCB ASSY
Hooks
Interlock harness guide
Front cover interlock
switch ASSY
Interlock harness guide
Front
Holes
Side frame L
Front cover interlock
switch ASSY
Front
Frame R
Hooks
Hook
LVPS fan (PS)
Harness holder 16AWG
Charge HVPS PCB ASSY
