2.2.3 Paper Feeding Kit (PF Kit1, PF Kit2)
<Uninstalling Procedure>
(1) Pull out the Paper tray, and remove the paper from the Paper tray.

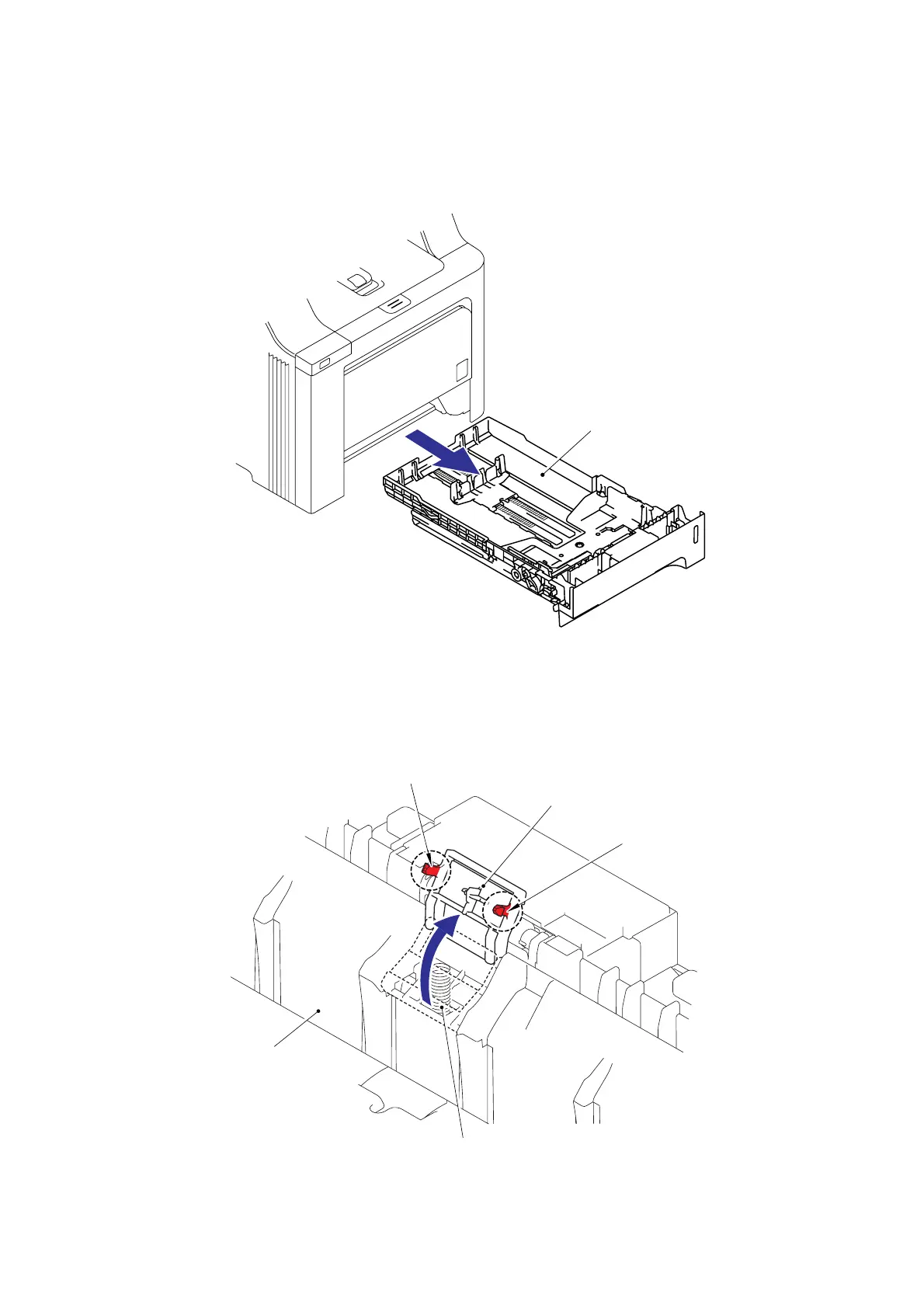

Fig. 2-50
(2) Release the two Hooks of the Separation pad ASSY, and then lift up the Separation pad
ASSY.
Note:
Be careful not to loose the Separation pad spring.
Fig. 2-51
Paper tray
Hook
Hook
Separation pad ASSY
Paper tray
<Front>
Separation pad spring
