Brother MFC-9440CN - Page 121

Confidential
2-29

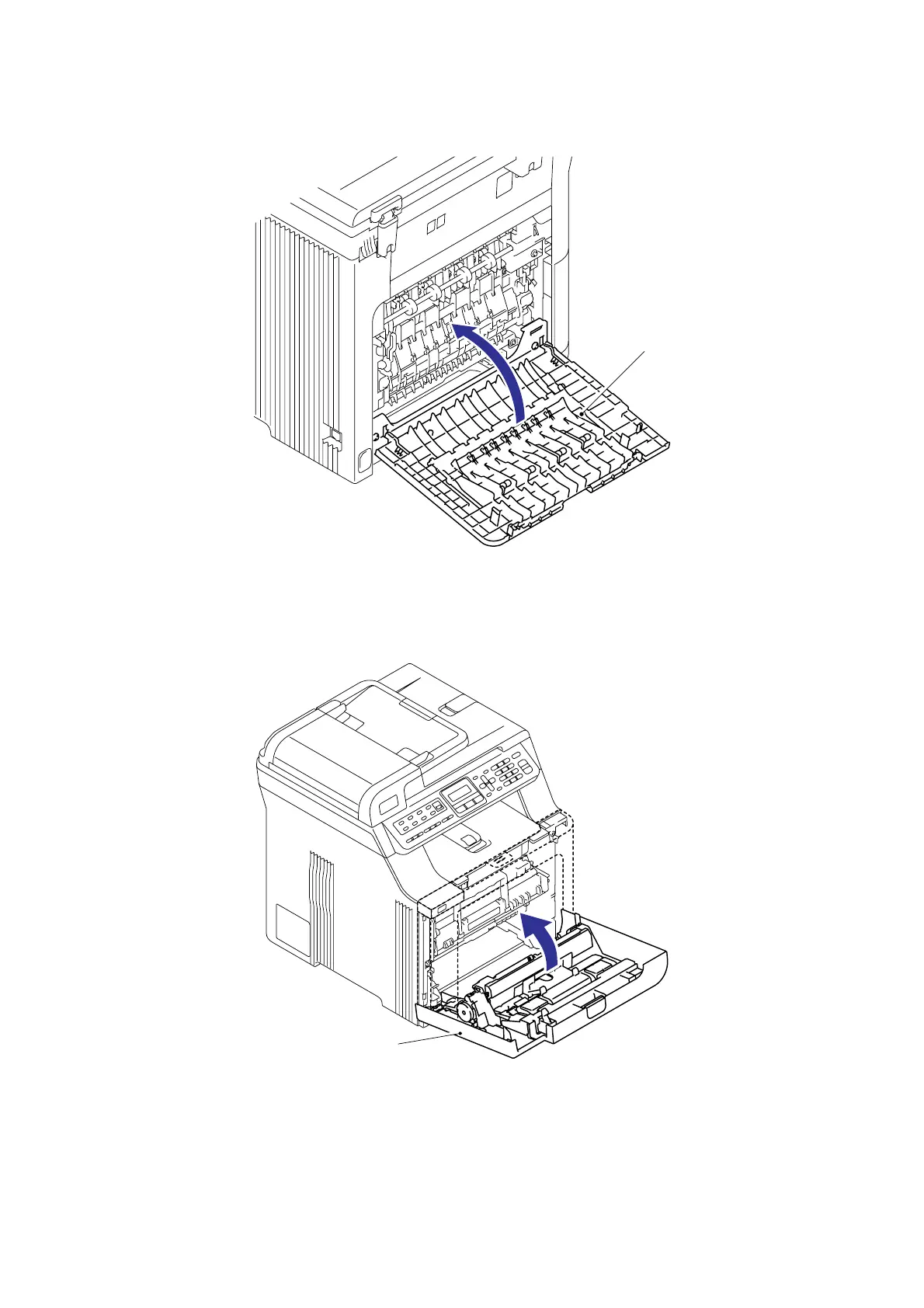

(22) Close the Back cover.
Fig. 2-48
(23) Close the Front door unit ASSY.
Fig. 2-49
(24) After replacing the Laser unit, reset the counter. (Refer to “2.3 Parts Life Reset Function”
in this chapter.)
Back cover
< Back side
Front door unit ASSY
