Brother MFC-9440CN - Page 120

Confidential
2-28

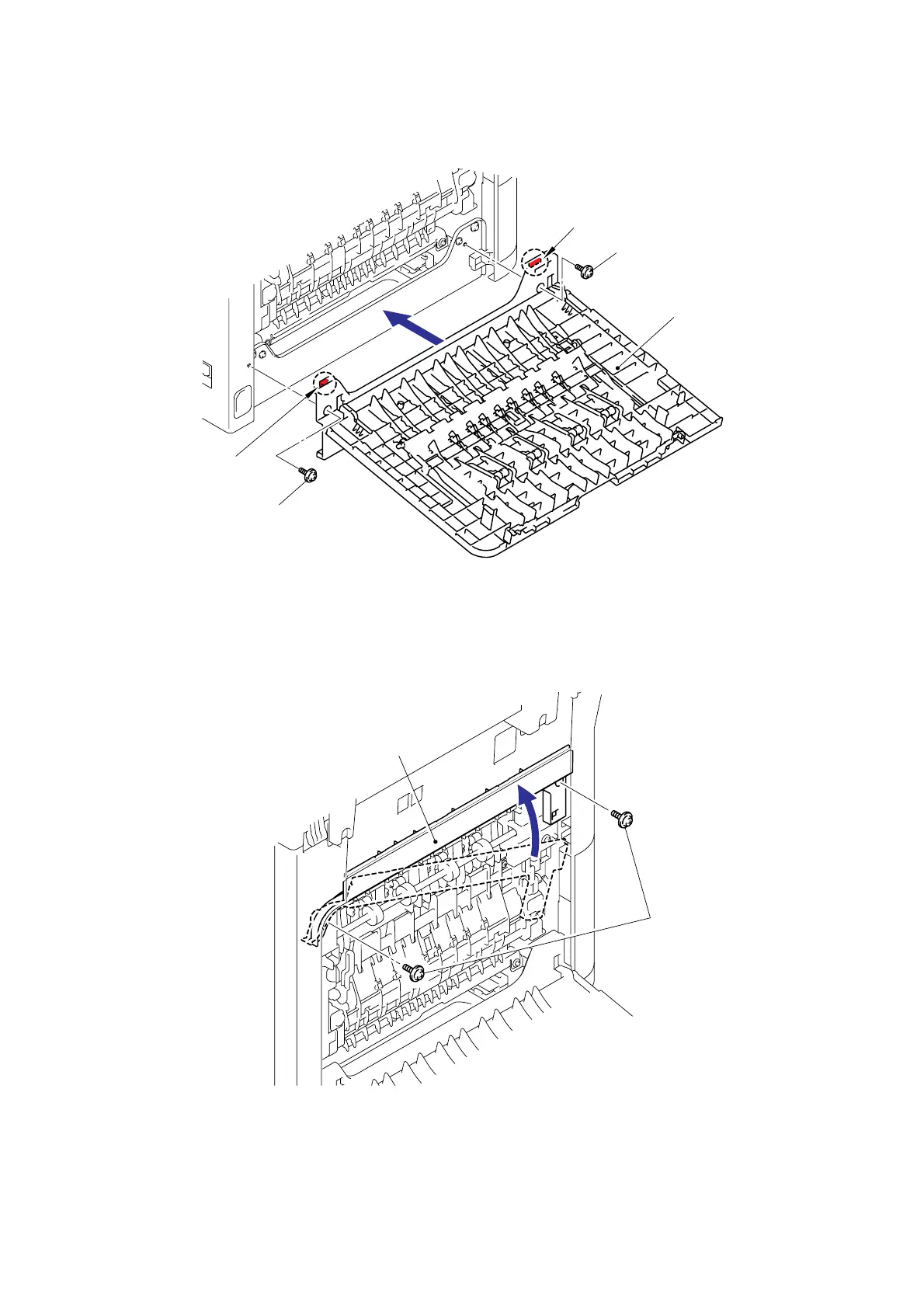

(20) Catch the Hooks of the Back cover ASSY and assemble it with the two cup S M3x8
Taptite screws.
Fig. 2-46
(21) Assemble the Back cover upper with the two cup S M3x8 Taptite screws.
Fig. 2-47
Taptite, cup S M3x8
Back cover ASSY
Taptite, cup S M3x8
<Back side>
Back cover upper
Taptite, cup S M3x8
<Back side>
Hook
Hook
