(6) Remove the Separation pad ASSY MP from the Front door unit ASSY.
(7) Remove the Separation pad spring MP.
Note:
Be careful not to loose the Separation pad spring MP.

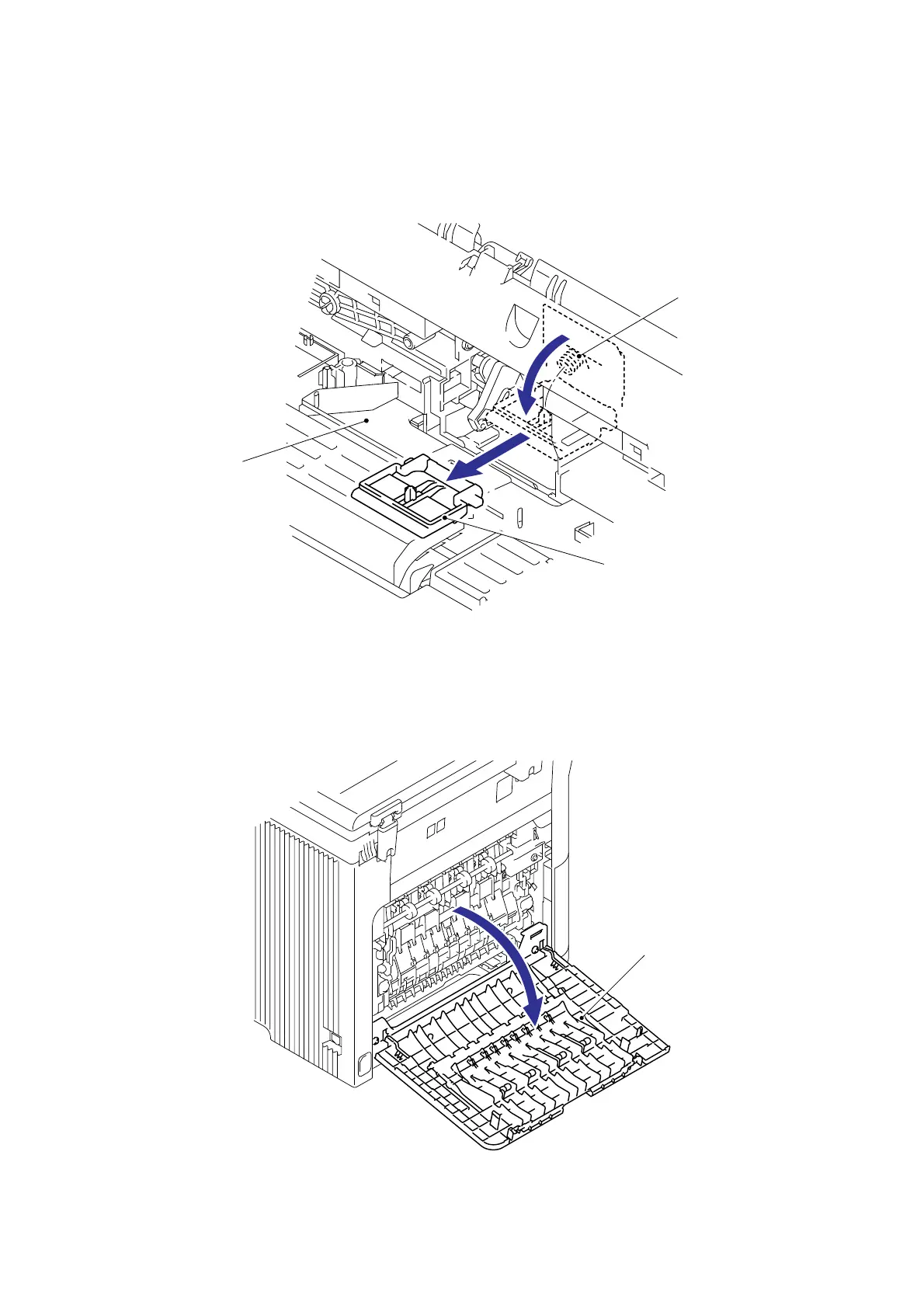

Fig. 3-15
8.5 Fuser Unit/ Toner Filter Frame ASSY
(1) Open the Back cover.
Fig. 3-16
<Back side>
Separation pad ASSY MP
Front door unit ASSY
<Front>
Separation pad spring MP
6a
6b
Back cover
