(3) Remove the Toner filter frame ASSY from the Paper eject ASSY DX/SX.

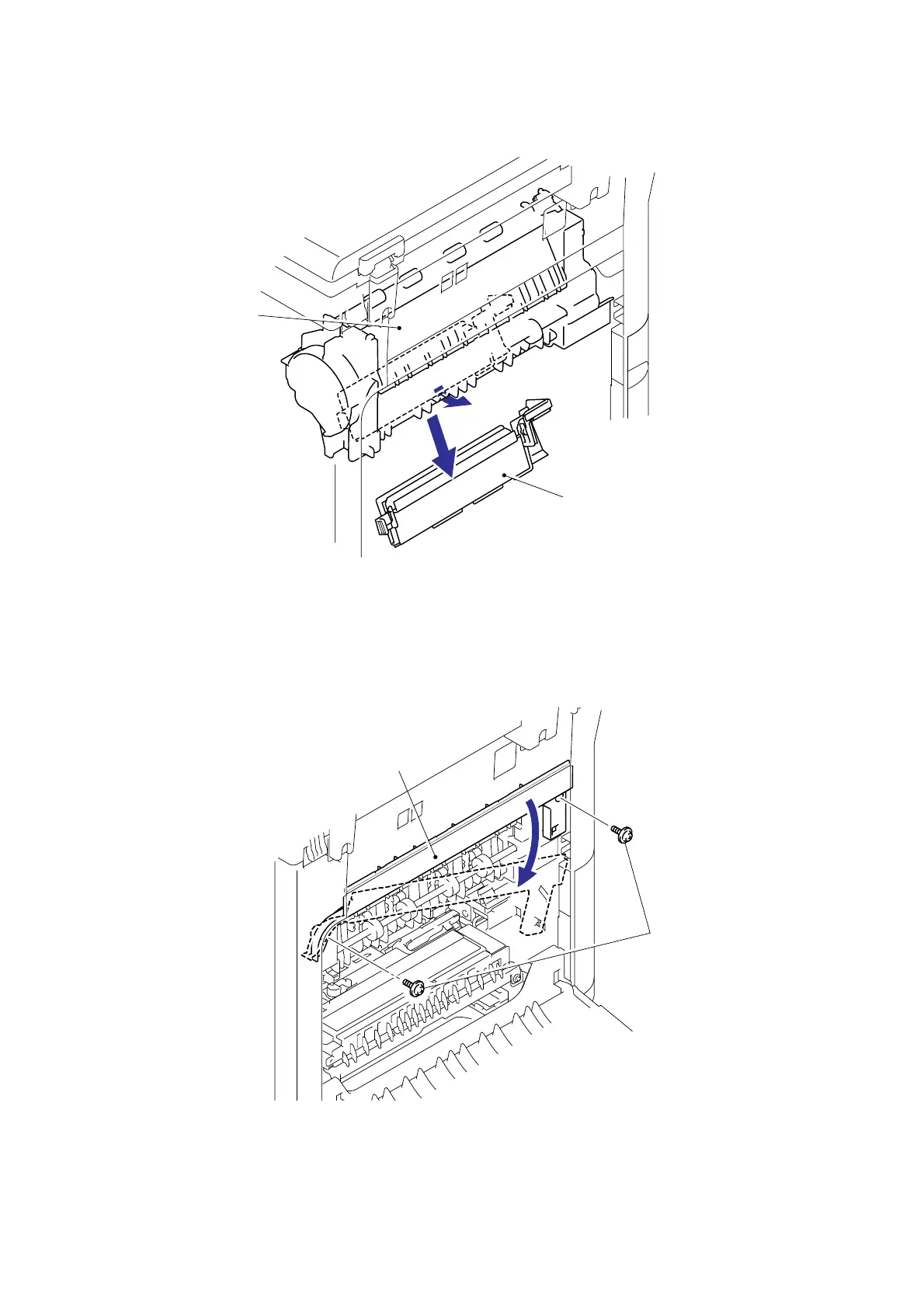

Fig. 3-19
8.6 Back Cover Upper
(1) Remove the two cup S M3x8 Taptite screws, and then remove the Back cover upper.
Fig. 3-20
Back cover upper
Taptite, cup S M3x8
<Back side>
Toner filter frame ASSY
Paper eject ASSY DX/SX
3a
3b
<Back side>
