Brother MFC-9440CN - Paper Eject ASSY DX;SX

Confidential
3-40

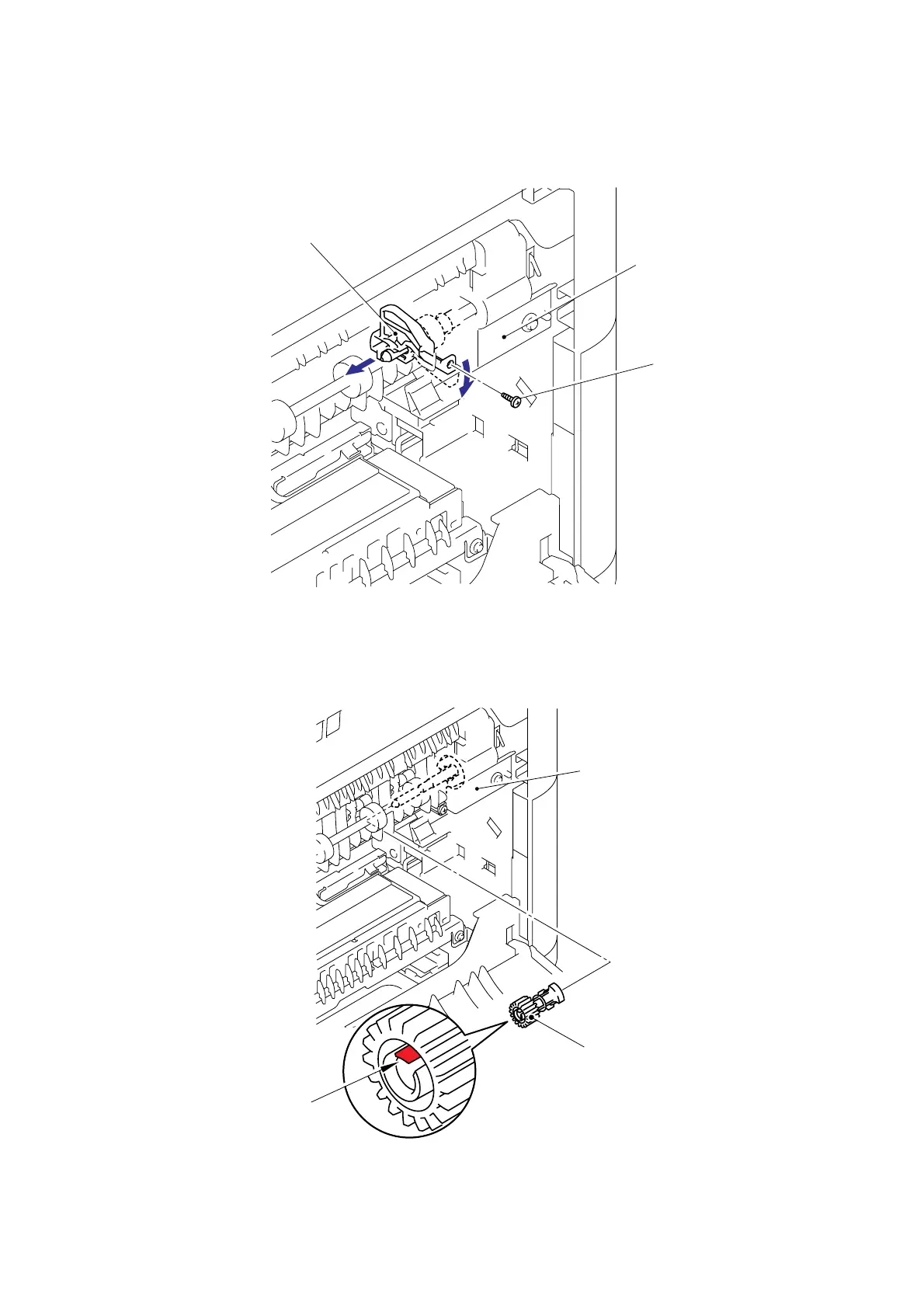

8.7 Paper Eject ASSY DX/SX
(1) Remove the bind B M3x10 Taptite screw, and then remove the Drive shaft holder.
Fig. 3-21
(2) Release the Hook to remove the Fuser drive gear 18 from the shaft.
Fig. 3-22
Fuser drive gear 18
Paper eject ASSY DX/SX
Drive shaft holder
Taptite, bind B M3x10
Hook
Paper eject ASSY DX/SX
<Back side>
<Back side>
1a
1b
