8.32 Hook Cover/ Front Cover Release Button/ Button Spring/ Front Door Main
(1) Remove the two cup B M4x10 Taptite screws.

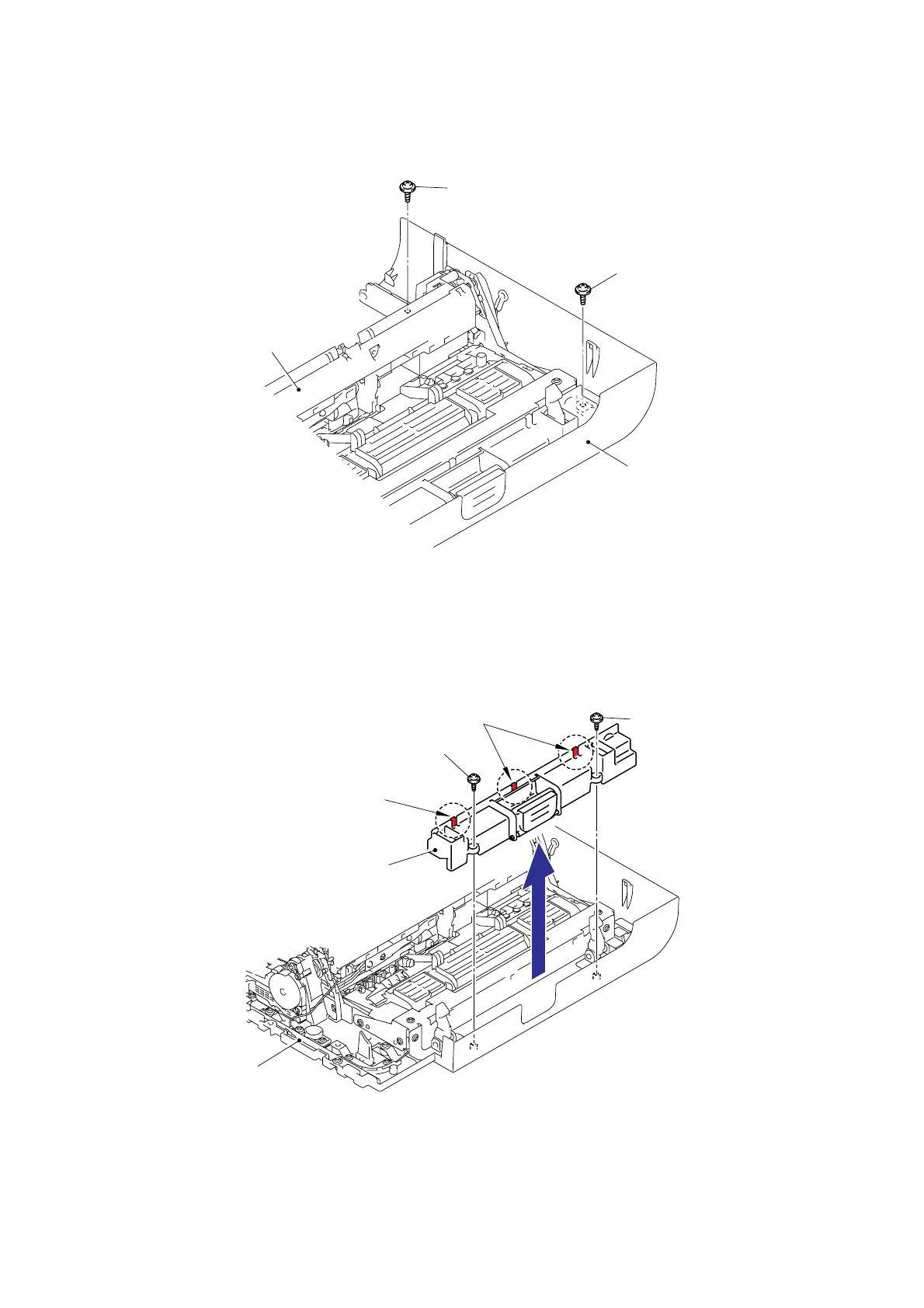

Fig. 3-145
(2) Remove the two cup B M4x10 Taptite screws.
(3) Release the three Hooks to remove the Hook cover from the Front door unit ASSY.
Fig. 3-146
Taptite, cup B M4x10
Taptite, cup B M4x10
Hooks
Hook
Hook cover
Front door unit ASSY
Taptite, cup B M4x10
Taptite, cup B M4x10
Front door unit ASSY
Front door main
