(7) Release the two Ratches and one Hook of the Gear cover from the back side of the ADF
unit to remove it.

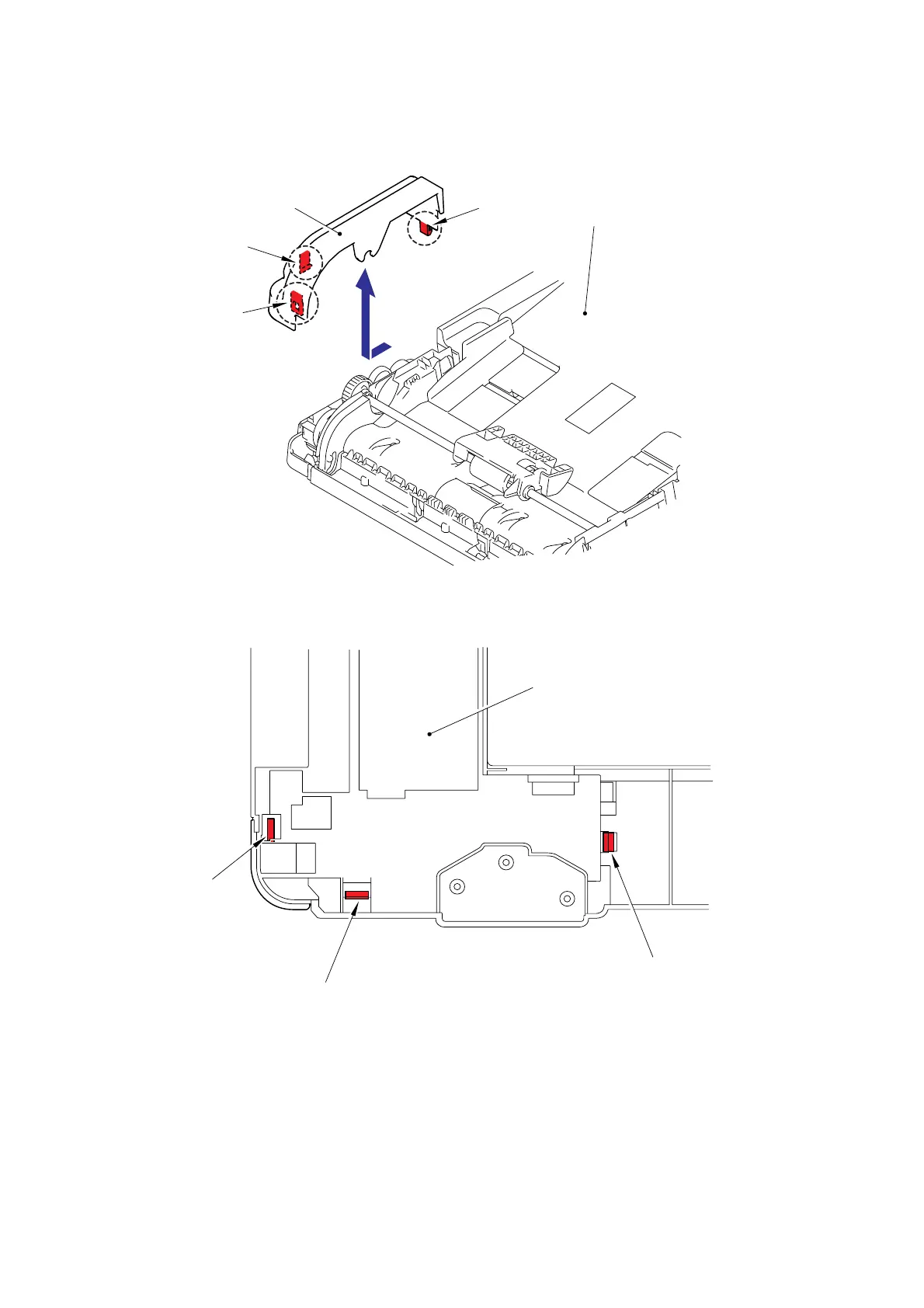

Fig. 3-61
Gear cover
Ratch
A
DF unit
Hook
Ratch
A
DF unit
Hook
Ratch
Ratch
* Hook and Ratch positions of the back view of the ADF unit.
