Confidential
3-143
Assembling Note:
- Be careful not to loose the HVPS charge head, HVPS charge head spring, HVPS DEV head
and HVPS DEV head spring. Before assembling the Charge HVPS PCB ASSY, check that
these four parts are complete, and that they move smoothly.

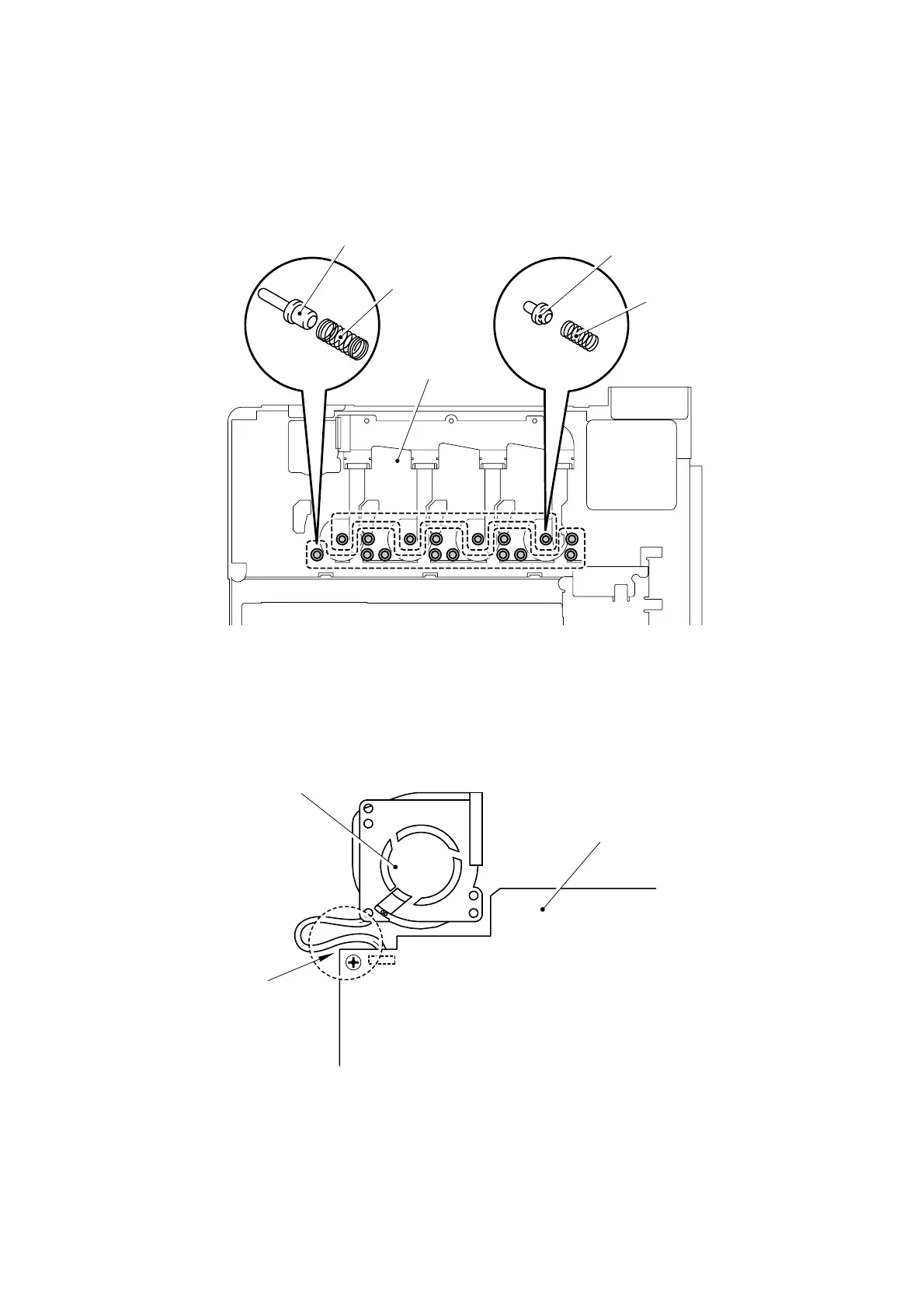

Fig. 3-206
- When assembling the Charge HVPS PCB ASSY, be careful not to catch the harness of the Air
intake fan (AIR) in the Charge HVPS PCB ASSY.
Fig. 3-207
ir intake fan (AIR)
Charge HVPS PCB ASSY
Caution
HVPS charge head spring
HVPS charge head
HVPS DEV
head spring
HVPS DEV head
Frame R
To Next Page
