(6) In the same way, enter the numeric value of the pattern 2, 3, 7, 8, and 9.
(7) When you enter the numeric value of the pattern 9 (Yellow Right), “SET REGISTRATION/
COMPLETED” is displayed on the LCD. When you press the Stop/Exit button, a buzzer
sounds for approx. 1 second and the machine returns to the initial stage of the
maintenance mode.

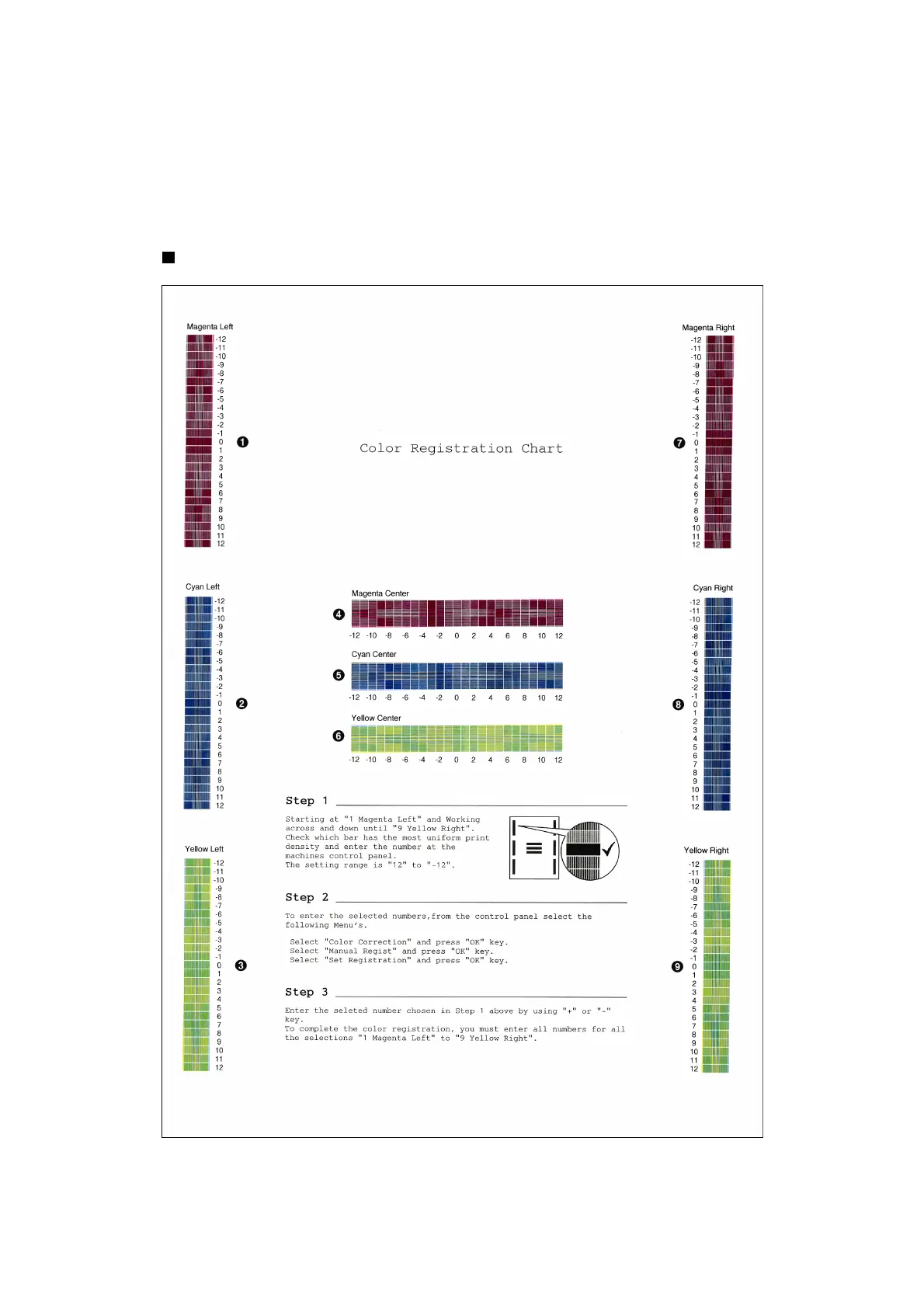

Color registration adjustment chart
Fig. 5-17
