Brother MFC Series User Manual

3-12
Confidential
3

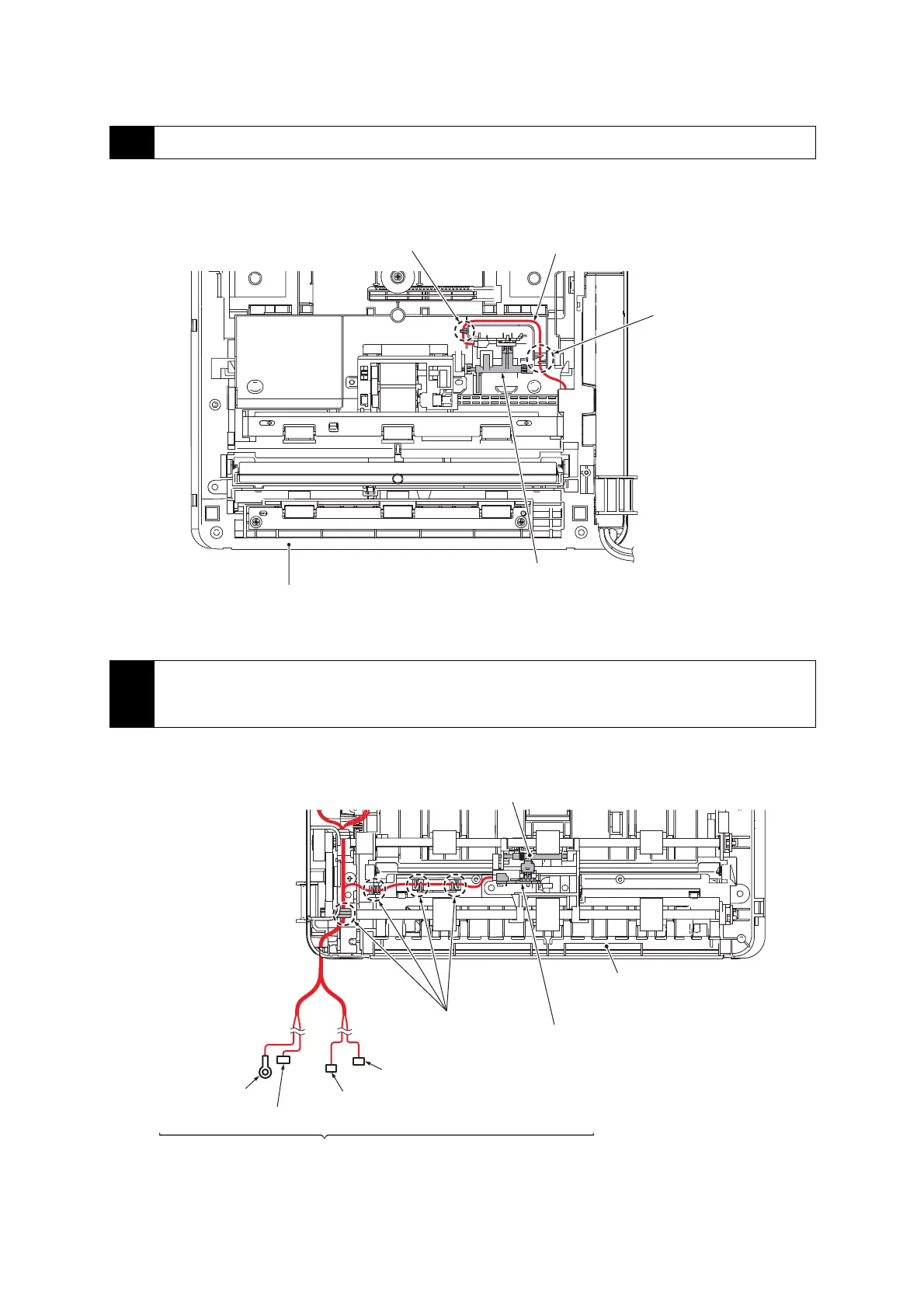

ADF unit reverse side (only for models with ADF unit): Document detection sensor harness
4
ADF unit top (only for models with ADF unit): ADF harness ASSY (ADF motor harness and
ADF FG wire, Document detection sensor harness, Document scanning position sensor
harness)
(3_071)
Document detection sensor harness
Cable guide
Cable guide
Document detection actuator
ADF unit (bottom)
(Rear)
(3_073)
ADF unit
Document scanning position sensor PCB ASSY
Cable guide
ADF motor harness
Document detection sensor harness
ADF FG wire
Document scanning position sensor harness
ADF harness ASSY
Document scanning position actuator
(Rear)
