3-13
Confidential
Note • Bend the Power supply harness in "x" as shown above.
• Bend the PF/Registration sensor harness ASSY in "y" as shown above.
• Bend the Carriage motor harness and Paper feed motor harness in "z" as shown
above.
5

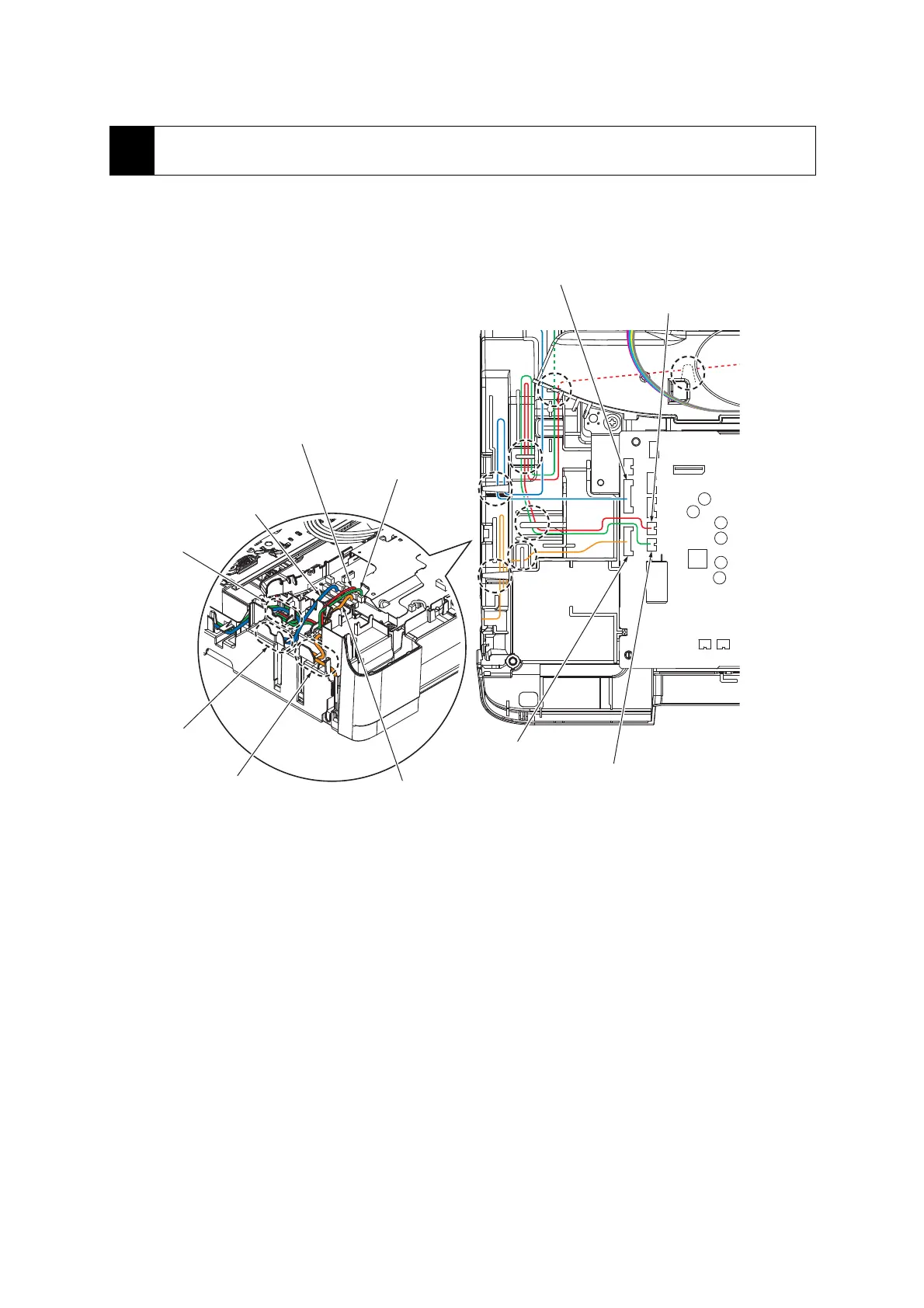

Lower cover upper left side: PF/Registration sensor harness ASSY, Power supply harness,
Carriage motor harness, Paper feed motor harness
(3_007L)
Power supply harness
Main PCB ASSY
Power supply harness
Paper feed motor harness
PF/registration
sensor harness ASSY
Carriage motor harness
Paper feed motor
harness
PF/registration
sensor harness ASSY
Carriage motor harness
"x" part
"y" part
"z" part
