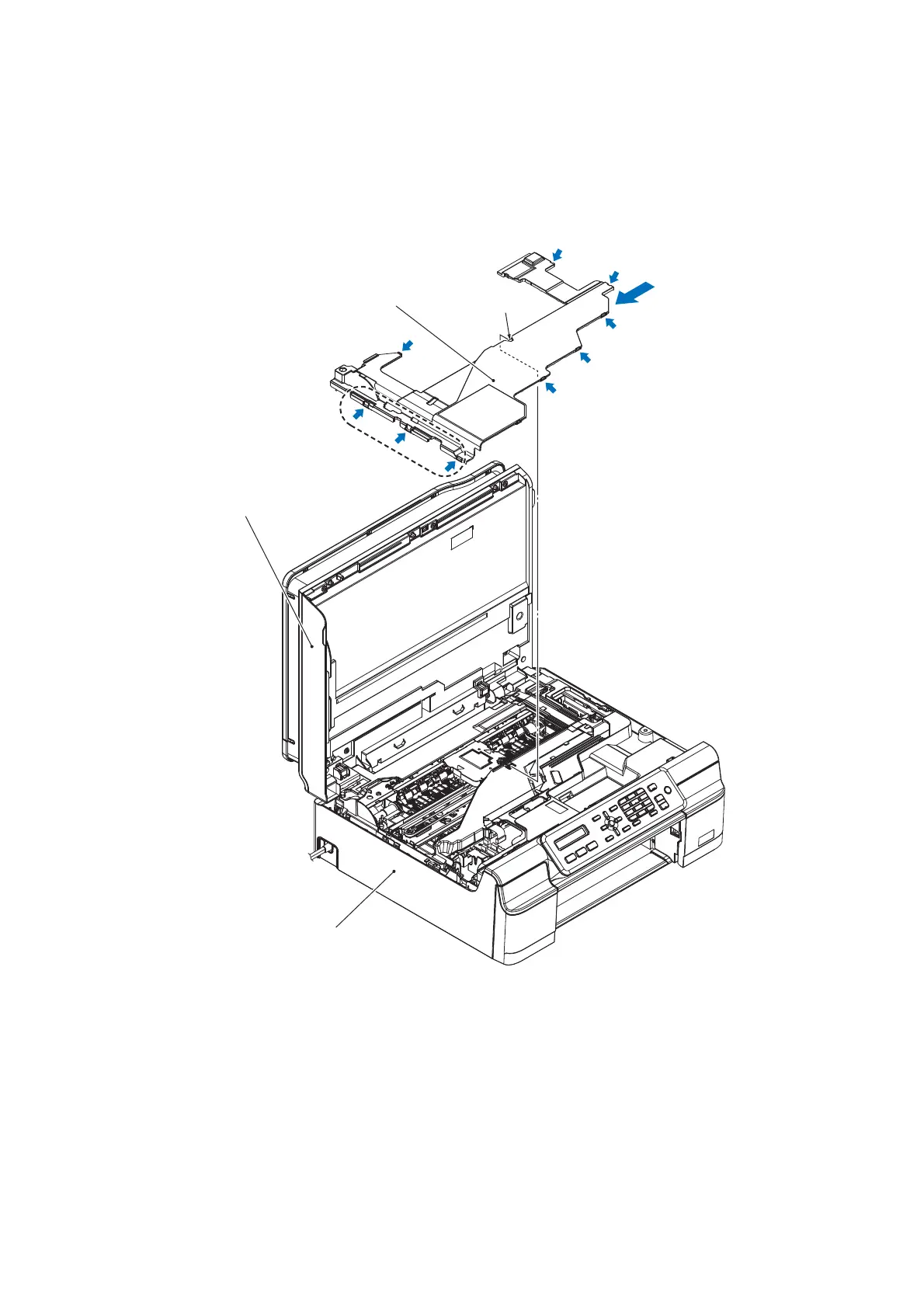

(7) Release hook â‘ and â‘¡ of the Harness cover then release hook â‘¢ by lightly inserting
a flathead screwdriver. Next, release tab â‘£ , then while moving it to the left, release
hook ⑤ .
Note Follow the order illustrated below when removing the Harness cover. Not doing so
may damage the Upper cover hooks.
Õ±
Õµ
Õ²
Õ³
Õ´
(3_023L)
Document scanner unit
Tab
Harness cover
Upper cover
