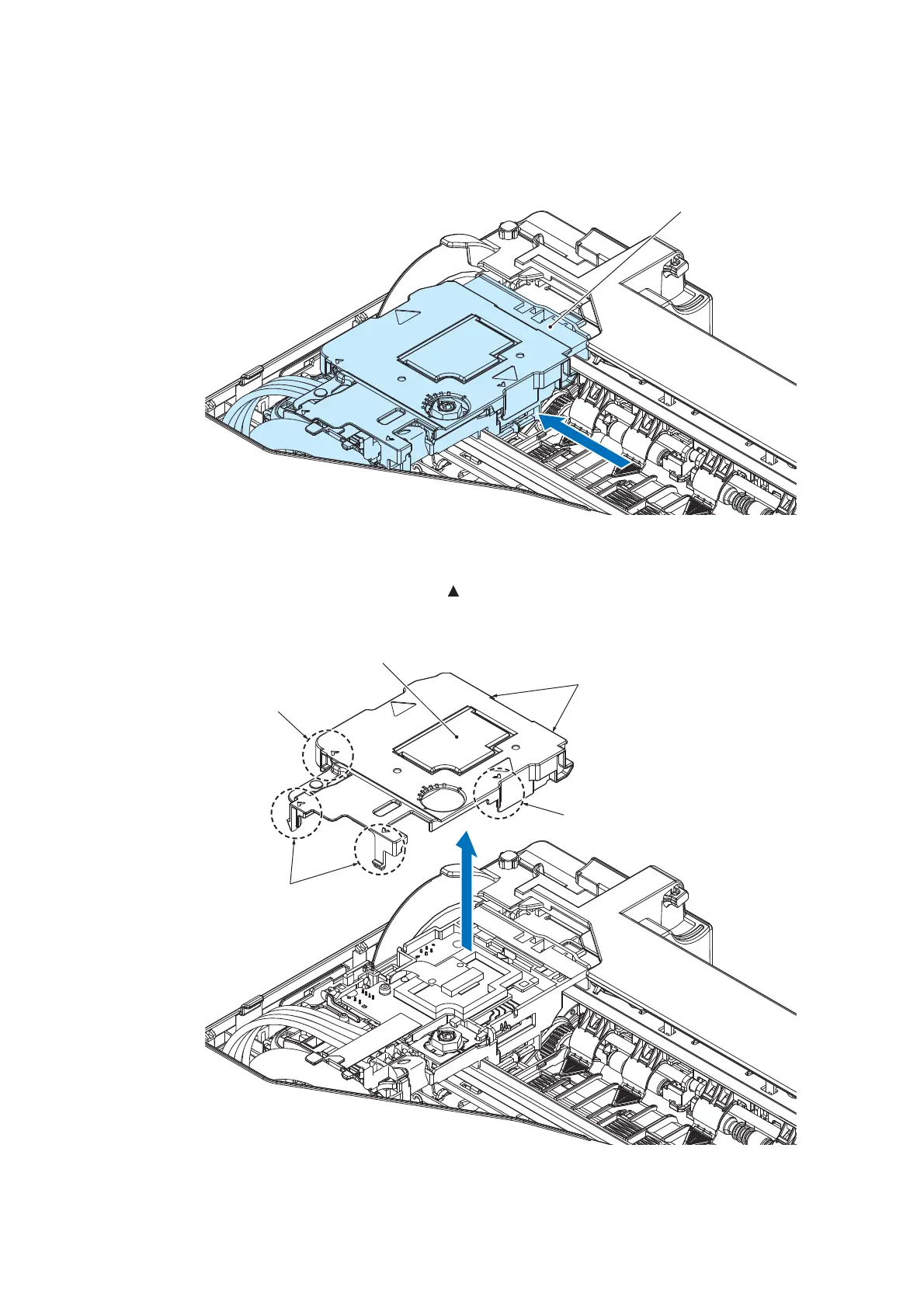

(8) Move the Head/carriage unit to the left end of its travel by hand (to a position where the
entire Head/carriage unit can be seen).
(9) Release the four latches with the mark on the Head cover, and then remove the
Head cover.
(3_024L)
Head/carriage unit
(3_025L)
Head cover
Tab
Latch
Latch
Latch
