ADF top cover front / ADF document support

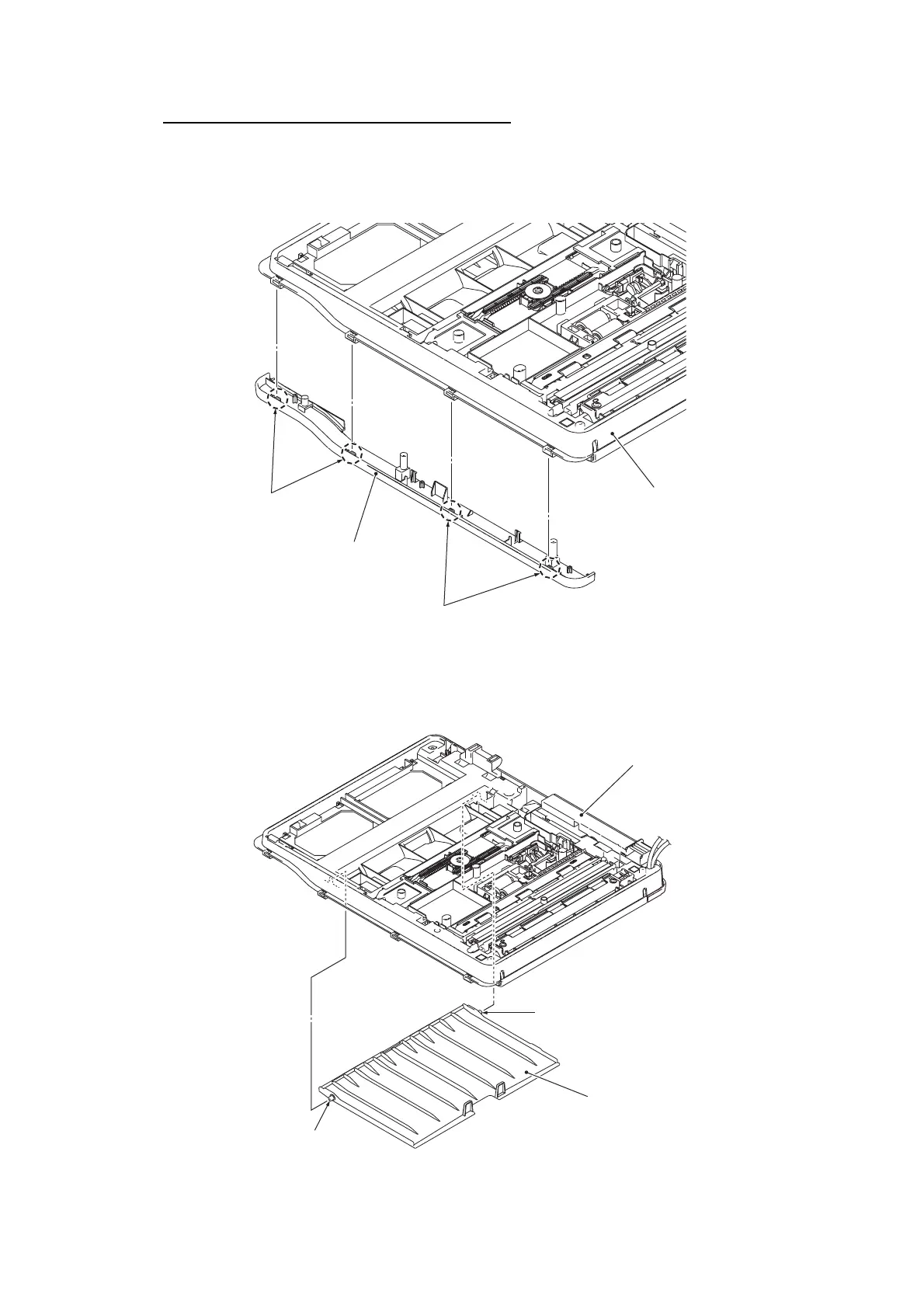

(5) Using a flathead screwdriver release four hooks of the ADF top cover front and remove
it from the ADF unit.
(6) Remove the ADF document support.
(3_064)
Hook
Hook
ADF top cover front
ADF unit
(Front)
(3_065)
Boss
Boss
ADF document support
ADF unit
(Rear)
(Front)
(Left)
