3-52
Confidential

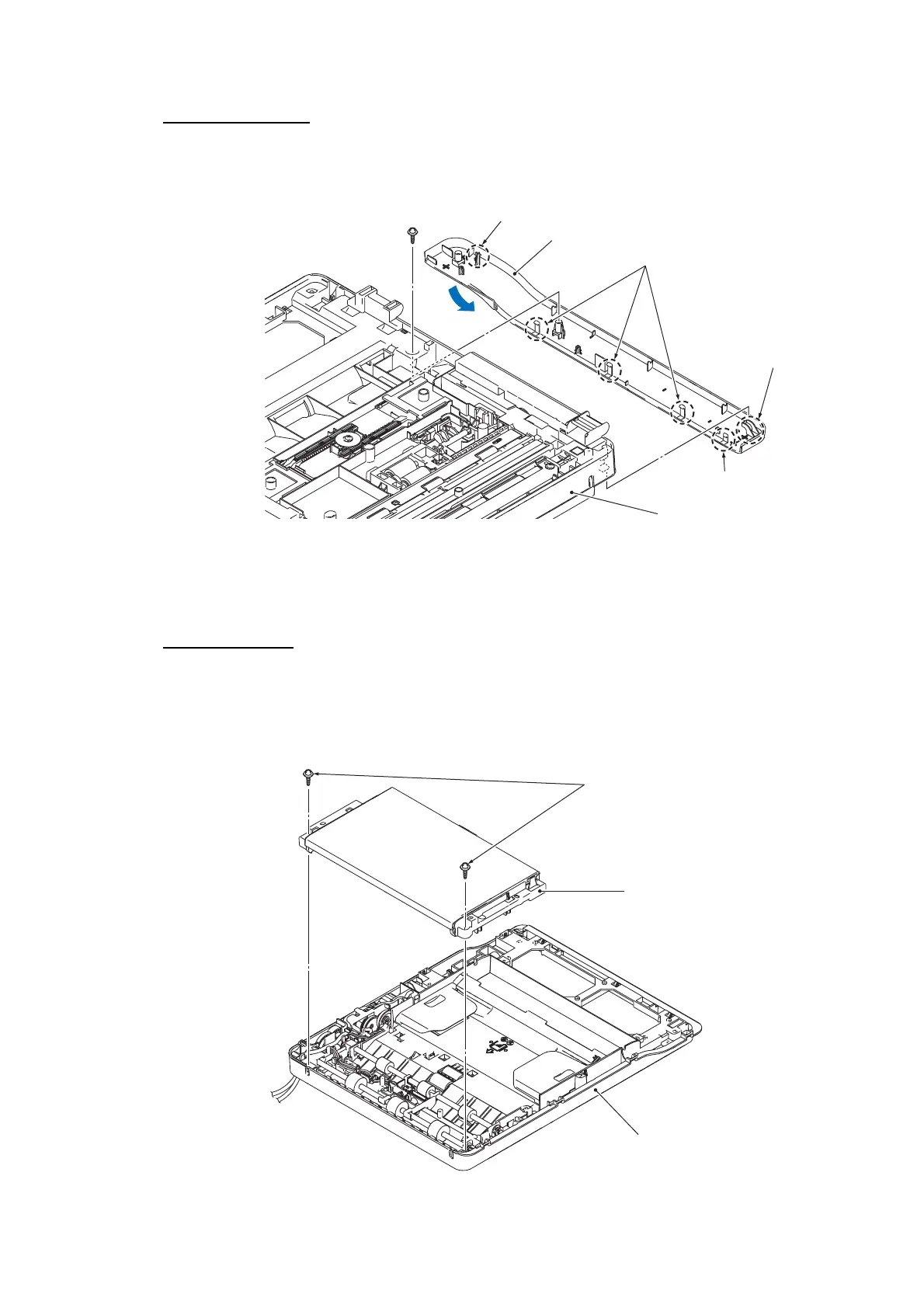

ADF top cover rear
(7) Remove the screw of the TAPTITE CUP B M3x10, unlatch the 5 latches, and release
the hook to remove the ADF top cover rear.
Assembling Note When mounting the ADF top cover rear, fit the hook first before pushing
the cover in place.
ADF cover ASSY
(8) Turn the ADF unit right side up.
(9) Remove the two screws of the TAPTITE CUP B M3x10 and remove the Upper
document chute from the ADF unit.
(3_066)
Latch
Hook
ADF top cover rear
TAPTITE CUP B M3x10
ADF unit
Latch
(Rear)
Latch
(3_067)
ADF unit
Upper document chute
TAPTITE CUP B M3x10
To Next Page
