3-53
Confidential

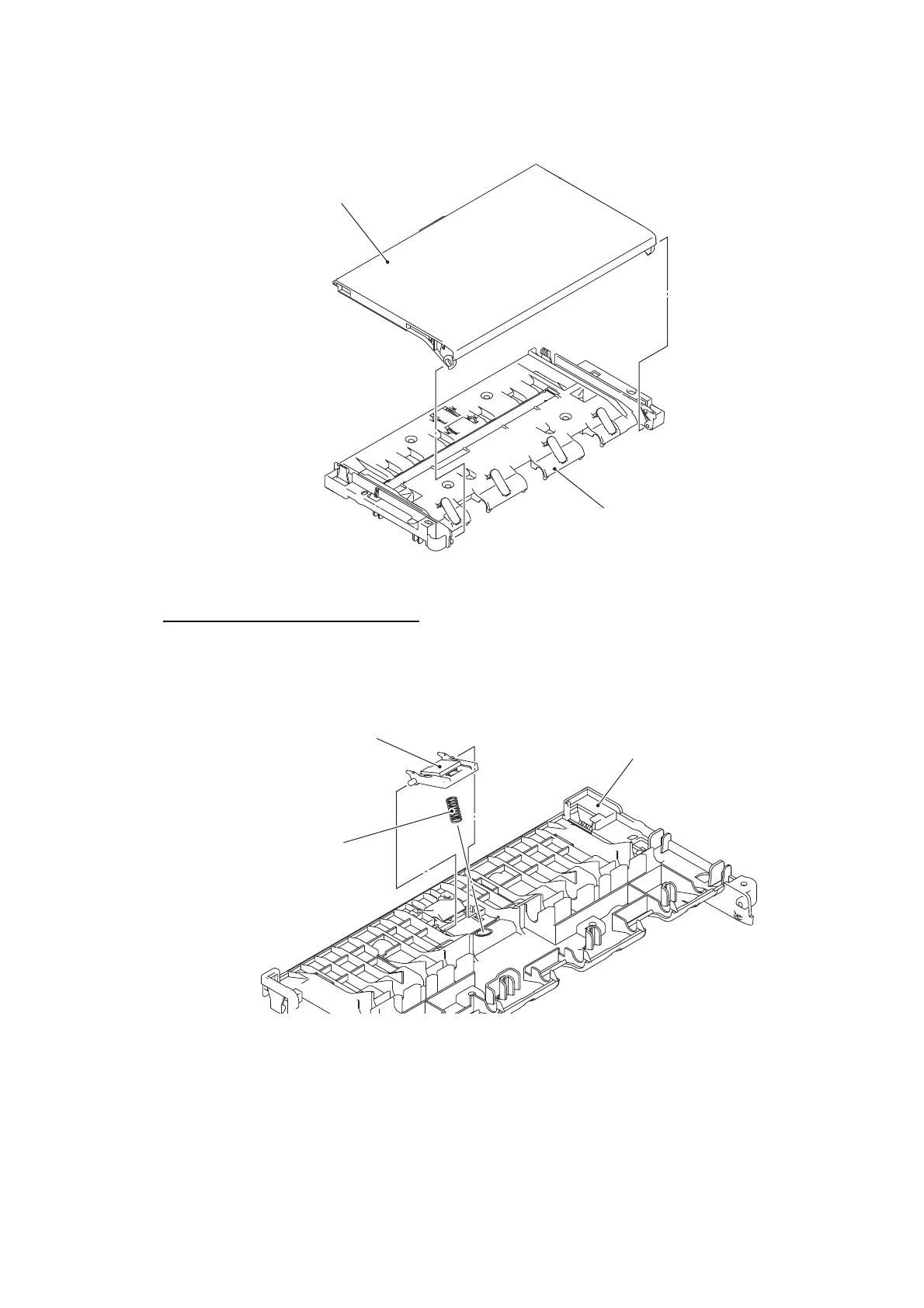

(10)Remove the ADF cover ASSY.
ADF separation pad holder ASSY
(11) Remove the ADF separation pad holder and its spring.
Note Be careful not to let the spring to fly out.
Assembling Note Insert the spring first into the opening then attach the ADF separation
pad holder.
(3_068)
(3_086L)
