3-69
Confidential

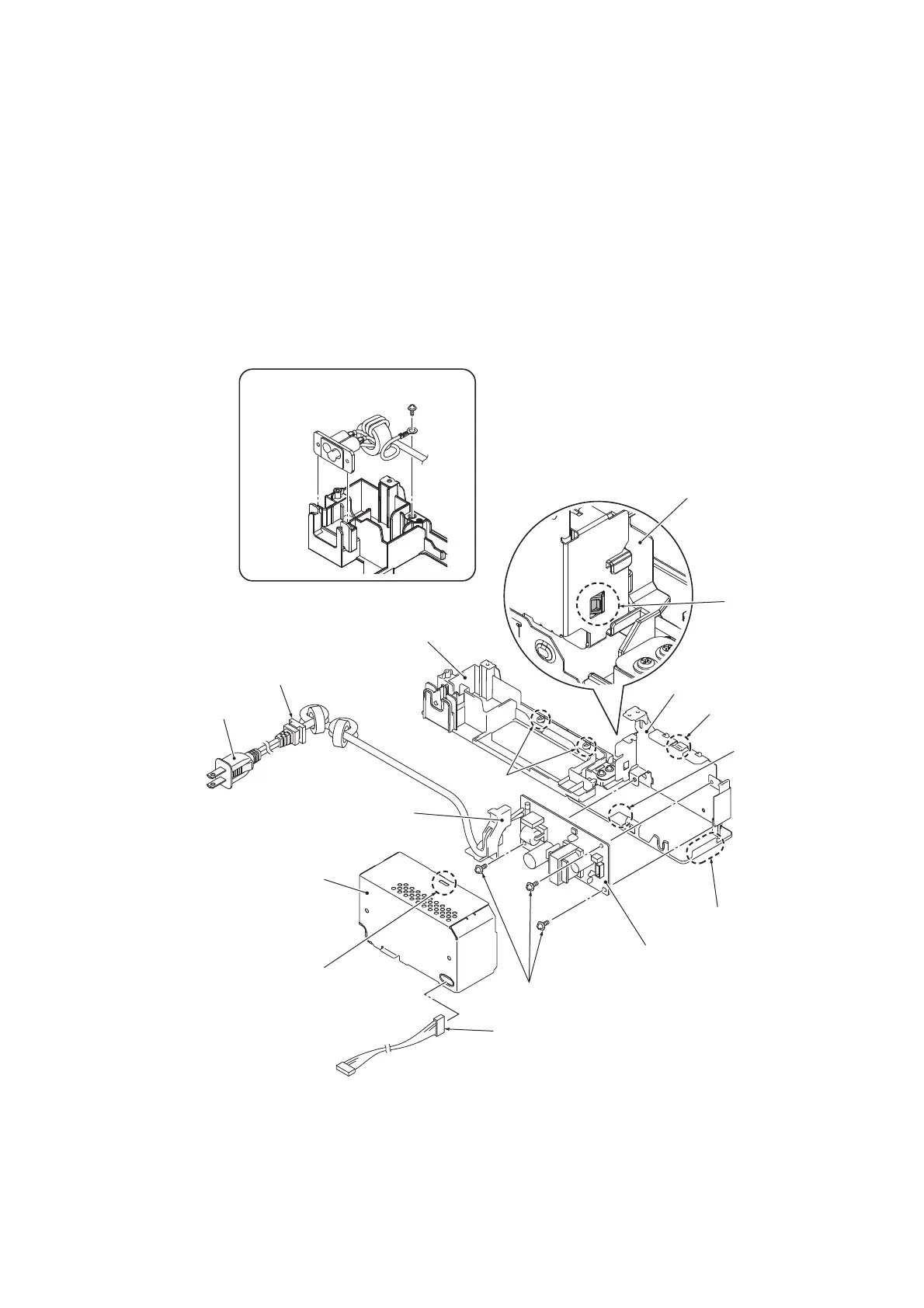

(4) <200V only> Remove the one screw of the SCREW PAN (WASHER) M4x8 DB from
the Power cord holder.
(5) Remove the Power cord from the Cable guide.
(6) Remove the Power supply shield from the Lower power supply frame lock and the two
stopper parts then pull it towards you.
(7) Disconnect the Power supply harness from the Power supply PCB.
(8) Remove the PS PCB insulator from the Lower power supply frame.
(9) Remove the three screws of the TAPTITE CUP S M3x6 and remove the Power supply
PCB from the Lower power supply frame.
(3_090L)
Power cord bushing
Power cord holder
Power supply shield
Slit
Power supply PCB
Stopper
Power supply harness
Lock
Stopper
Lower power
supply frame
SCREW PAN (WASHER)
M4x8 DB
TAPTITE CUP S M3x6
Power cord
Cable guide
[100V]
[200V]
PS PCB insulator
Lock
PS PCB insulator
To Next Page
