3-70
Confidential

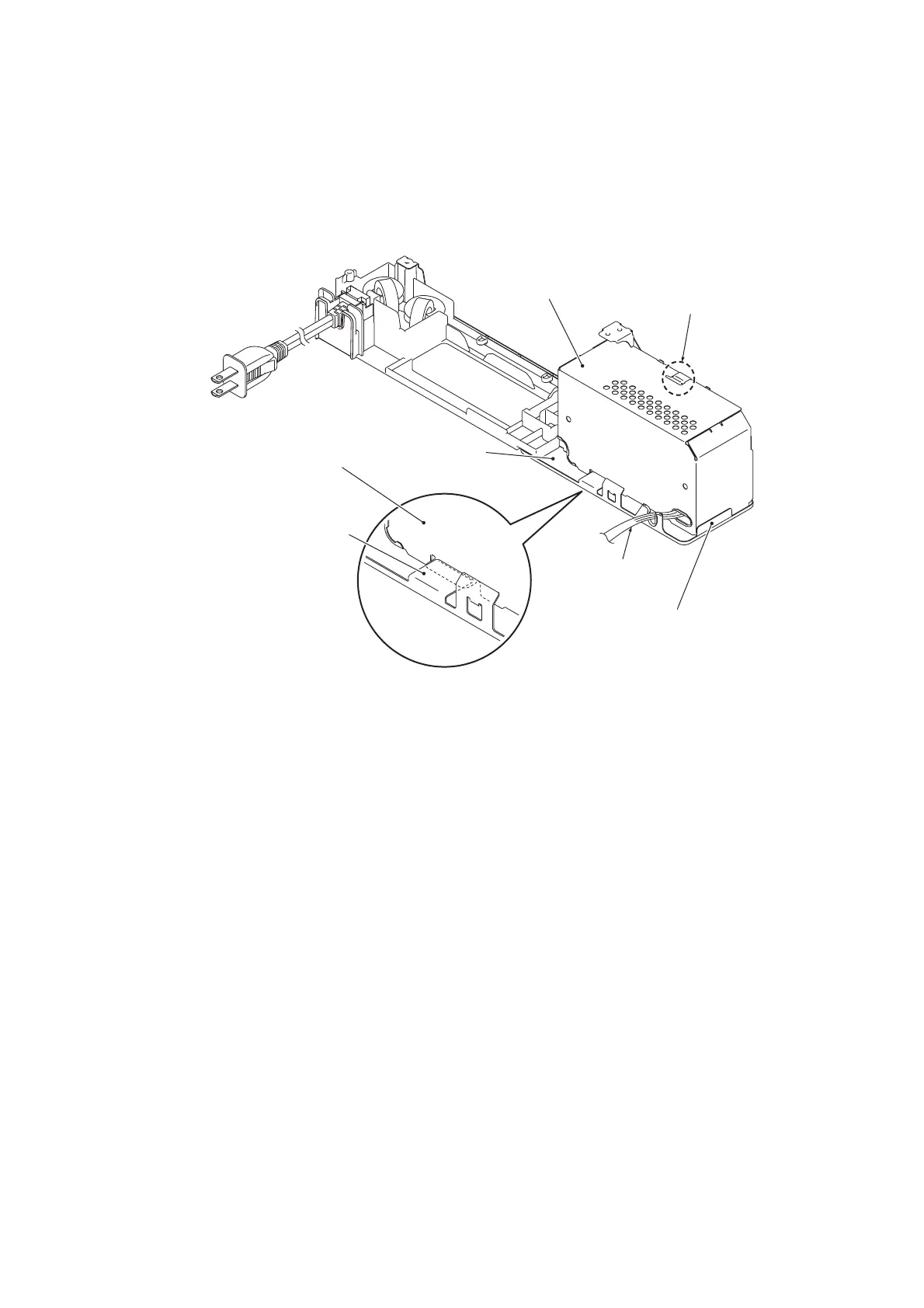

Assembling Note When installing the Power supply shield, insert the part that bends to
the outside of the left end under the stopper of the Lower power supply frame, insert the
front end into the Lower power supply frame rib, and fix the top slits in place by locking the
Lower power supply frame.
(3_091)
Power supply shield
Lock
Power supply harness
Lower power supply frame front rib
(Put the front end of the Power supply
shield into the inside of the front rib of
the Lower power supply frame)
Lower power supply
frame
Power supply shield
Lower power supply
frame stopper
(Left)
To Next Page
