3-74
Confidential

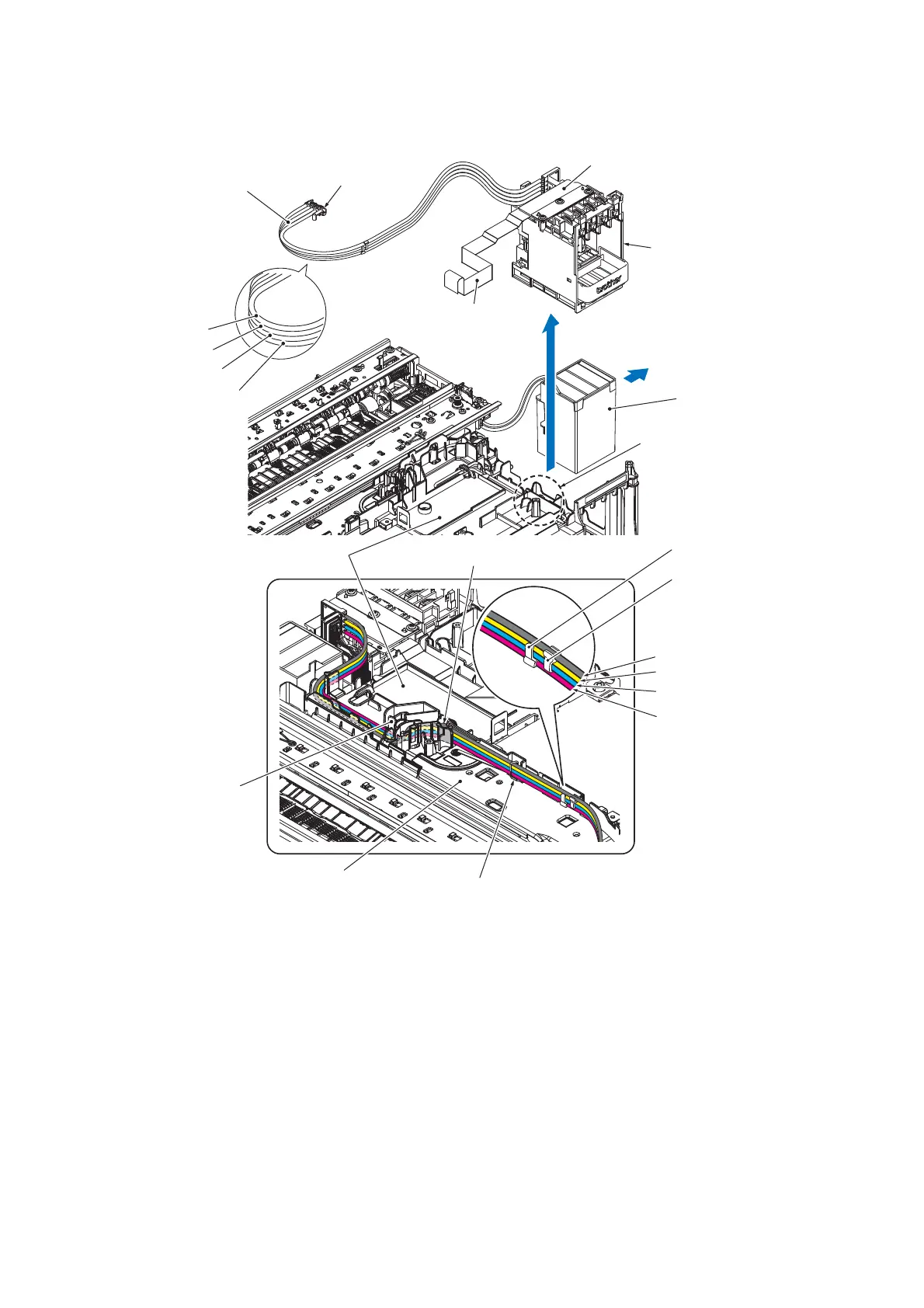

(6) Take out the Ink refill ASSY.
Note
• Do not remove the Protective part. Doing so in this state will make the ink inside
the ink tubes flow out.
• The Ink absorber felt (for the Ink refill ASSY) attached to the bottom of the Ink refill
ASSY may get stained with ink. If there is a significant stain, replace the Ink
absorber felt.
Assembling Note
• When attaching the tube clamps to the Ink supply tubes, view the machine from the
front, attach the right tube clamp (1) to magenta, bind cyan and yellow, attach the left
tube clamp (2) to black, and bind yellow and cyan (refer to the illustration on the previous
page).
Ink absorber box
Ink refill ASSY
Ink supply tubes
Ink sensor flat cable
Head joint
Ink cartridge detection
sensor PCB
Ink remaining sensor
flat cable guide
Black
Yellow
Cyan
Magenta
Sponge
Tube
clamp (1)
Tube
clamp (2)
Black
Yellow
Cyan
Magenta
Tube support wire elbow
Tube support plate
Tube guide
Lower cover
To Next Page
