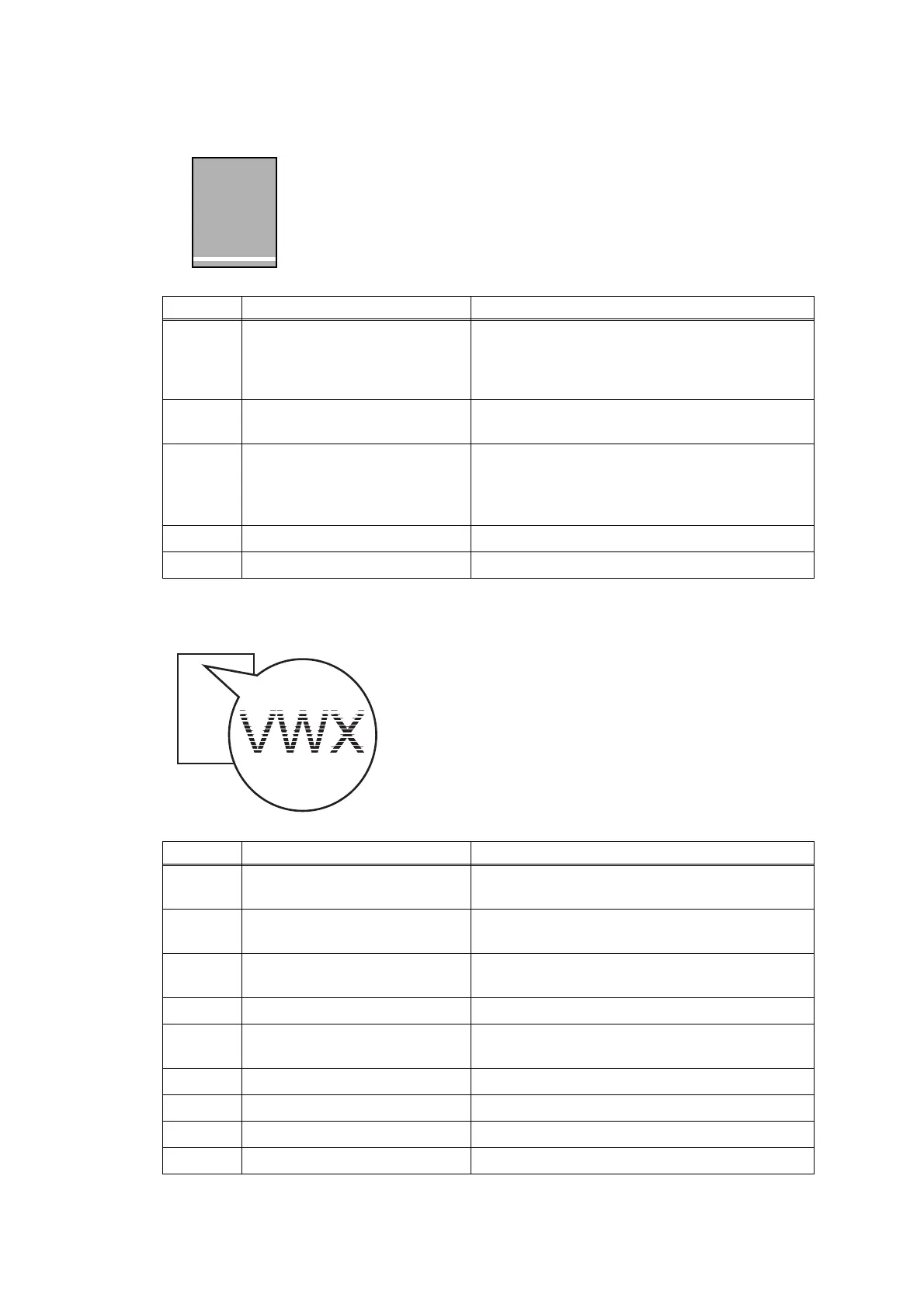

■ Separated lines at the trailing edge of the recording paper
■ Characters have shadows (ghost)
<User Check>
- Carry out head cleaning.
Step Cause Solution
1
Paper feeding correction not
aligned
Perform paper feeding correction.
(Refer to Chapter 5, Section 1.4.17)
Adjust the AMS06.
(Refer to Chapter 5, Section 1.4.32)
2
PF encoder disk stained Clean the PF encoder disk and flushing guide.
(Refer to Chapter 3, Section 1)
3
Non-discharge of ink from
head
Carry out the recommended purge procedures.
Refer to "Recommended purge procedures" in
"Chapter 5, Section 1.4.26 "Purge Operation
(Maintenance mode 76)"
4
PF encoder disk defective Replace the PF encoder disk.
5
Main PCB defective Replace the Main PCB ASSY.
<User Check>
- Carry out head cleaning.
- Perform the printing position adjustment.
Step Cause Solution
1
Vertical print lines not aligned Adjust vertical print line alignment.
(Refer to Chapter 5, Section 1.4.20)
2
Paper feeding correction not
aligned
Perform paper feeding correction.
(Refer to Chapter 5, Section 1.4.17)
3
PF encoder disk stained Clean the PF encoder disk and flushing guide.
(Refer to Chapter 3, Section 1)
4
CR encoder strip stained Clean the CR encoder strip.
5
Platen or CR guide rail not
mounted in place
Reattach the Platen or CR guide rail.
6
PF encoder disk defective Replace the PF encoder disk.
7
CR encoder strip defective Replace the CR encoder strip.
8
Head defective Replace the Head/carriage unit.
9
Main PCB defective Replace the Main PCB ASSY.
