Removing the paper pressure holder and registration sensor actuator

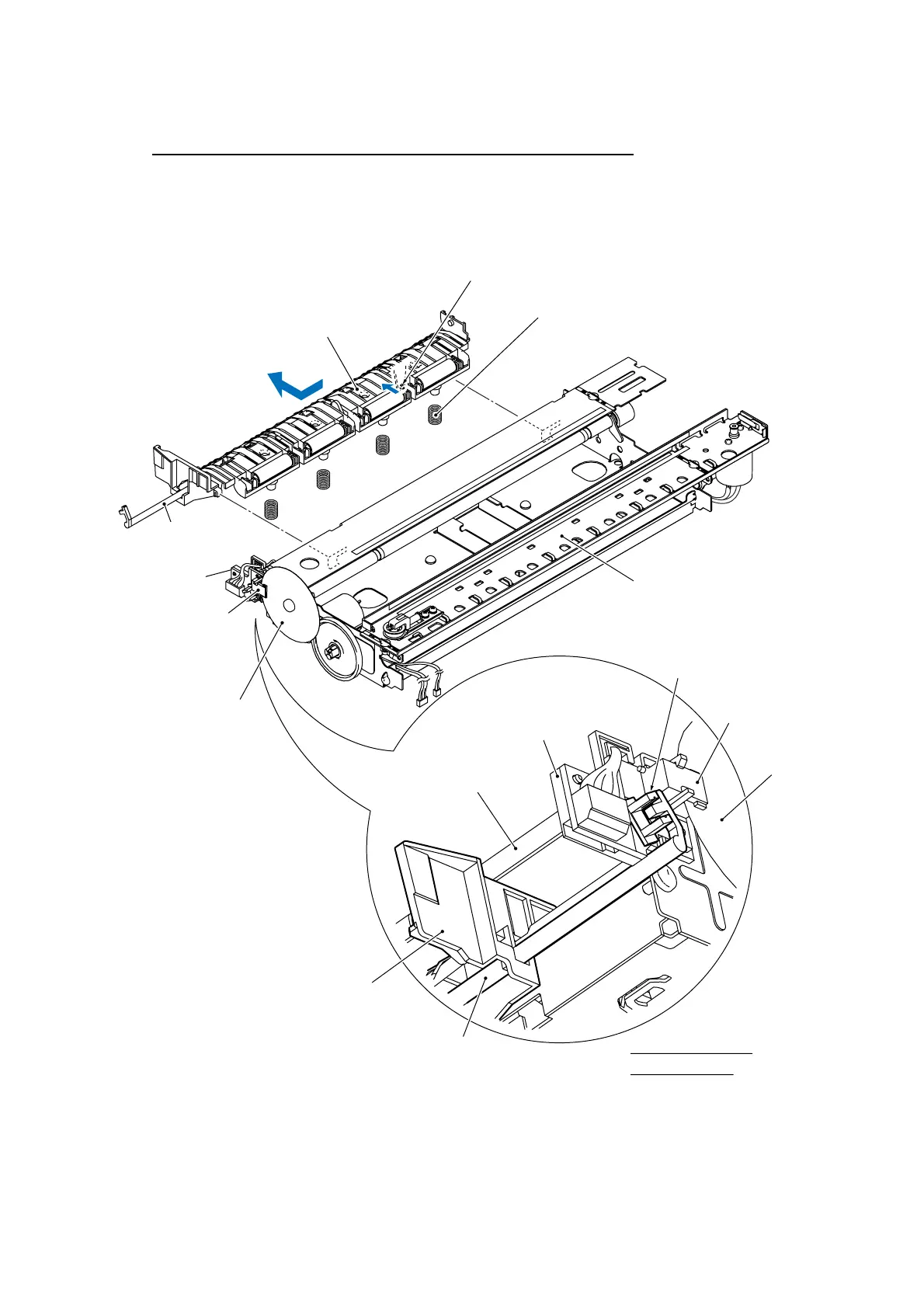

(7) Release the latch provided on the paper pressure holder from the engine unit and remove the
holder to the left and rear. The four paper pressure springs also come off.
Engine unit
Paper pressure holder
Registration
sensor actuator
PF sensor PCB
PF encoder sensor
PF encoder disk
Paper pressure holder
Registration sensor actuator
Registration sensor
and its actuator
PF encoder sensor
Registration sensor
Paper pressure springs
Engine unit
Latch
PF sensor PCB
PF encoder
disk
