3.2 MECHANICAL COMPONENTS

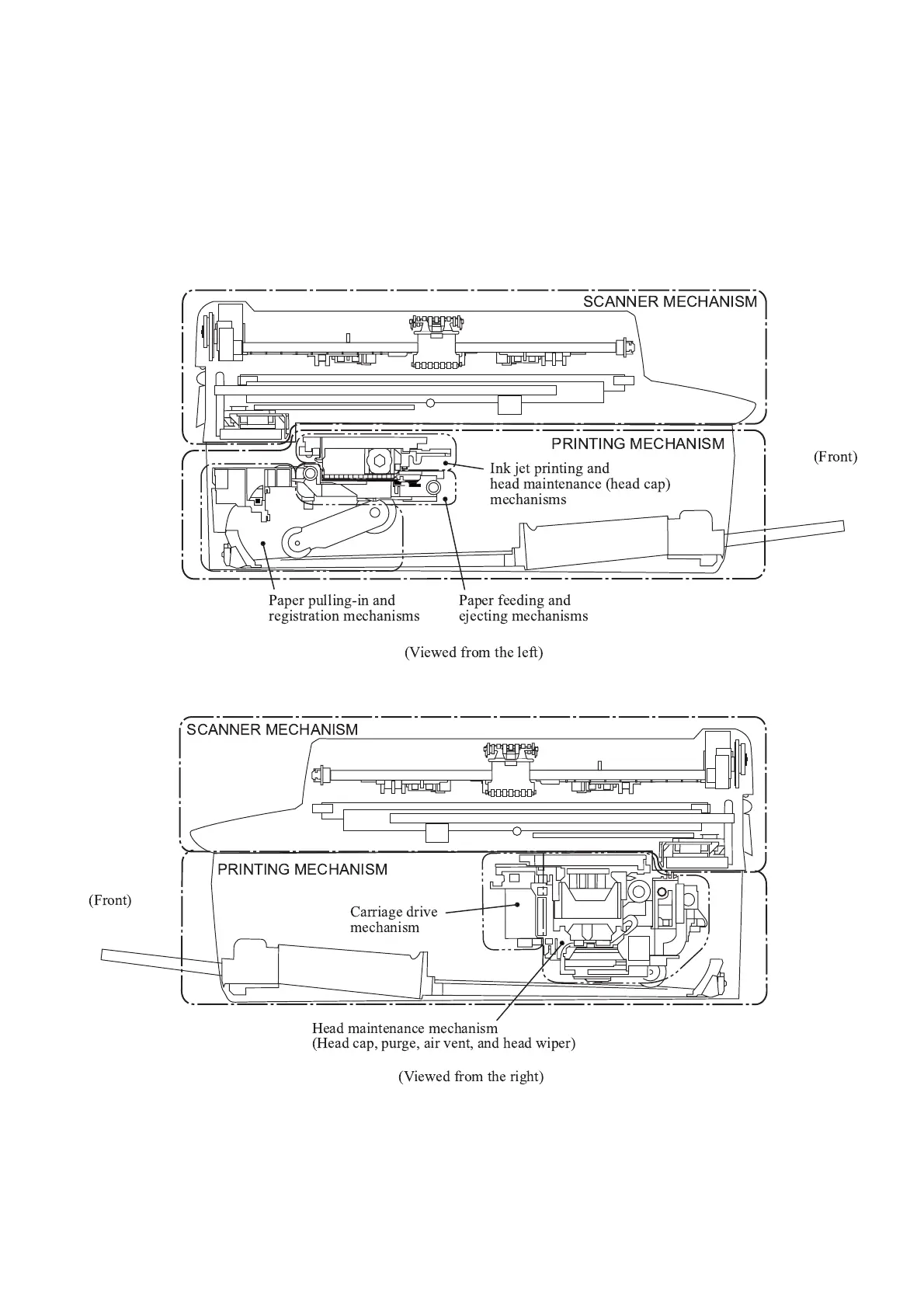

This machine consists of the following mechanisms and uses four motors, two encoders, various
sensors, and a head thermistor.
 
 
Ink jet printing and
head maintenance (head cap)
mechanisms
Paper pulling-in and
registration mechanisms
Paper feeding and
ejecting mechanisms
(Viewed from the left)
(Front)
   
 
 
 

  
       

