5-65 Confidential

Removing the carriage motor

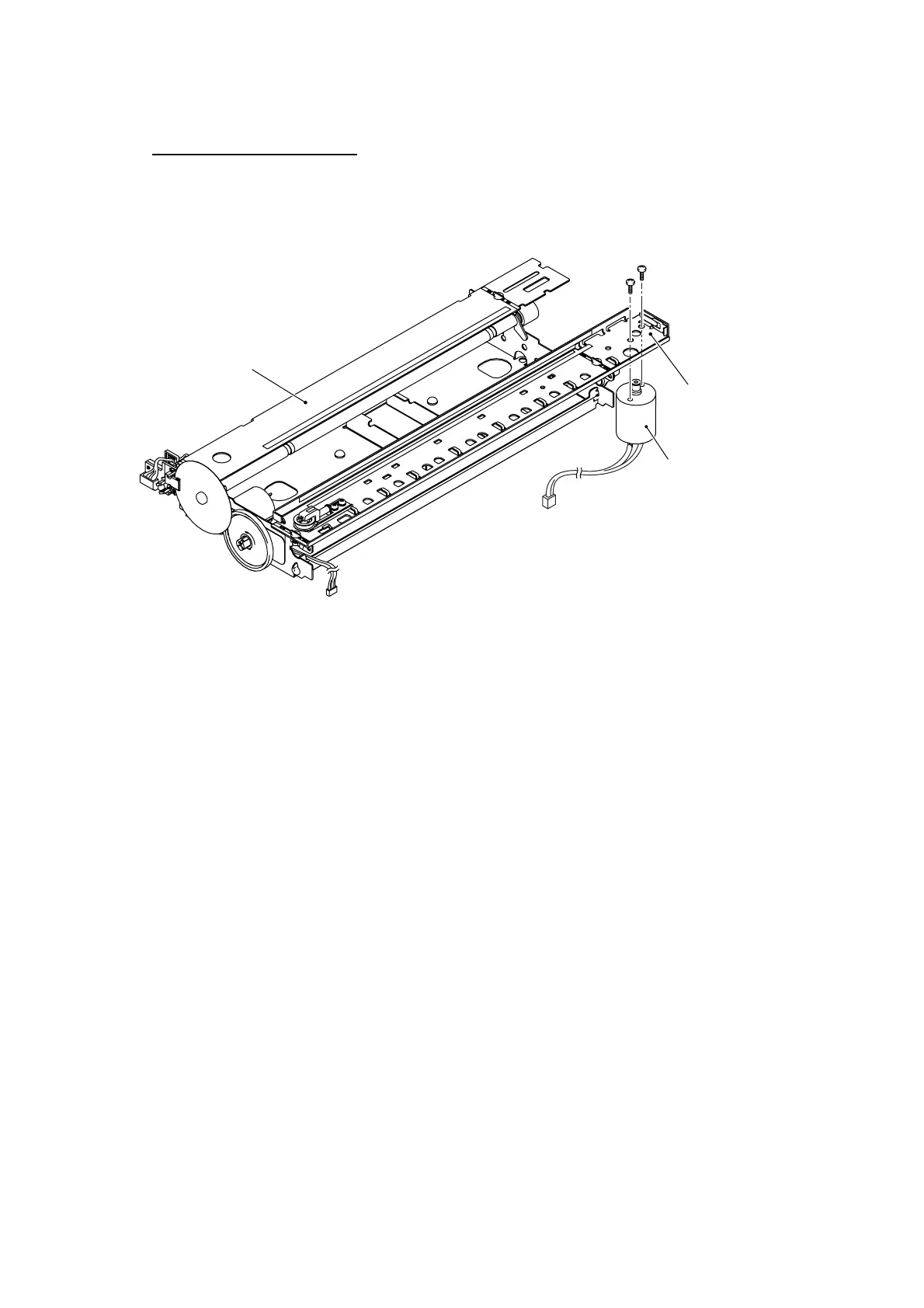

(10) Release the carriage motor from the engine unit by removing the two screws.

CR support chassis

CR guide rail

Screw, bind M3x3

Carriage motor
