II-
2
2.1.2 Press Contact and Release Mechanism of Thermal Head
The head ASSY is pressed firmly against the platen by the force of spring. When the release
levers L and R are pulled upwards, they are unlocked so that the platen and top cover are
released. The tape can be loaded into the machine in this status. If the head ASSY is
pressed against the platen, close the top cover.

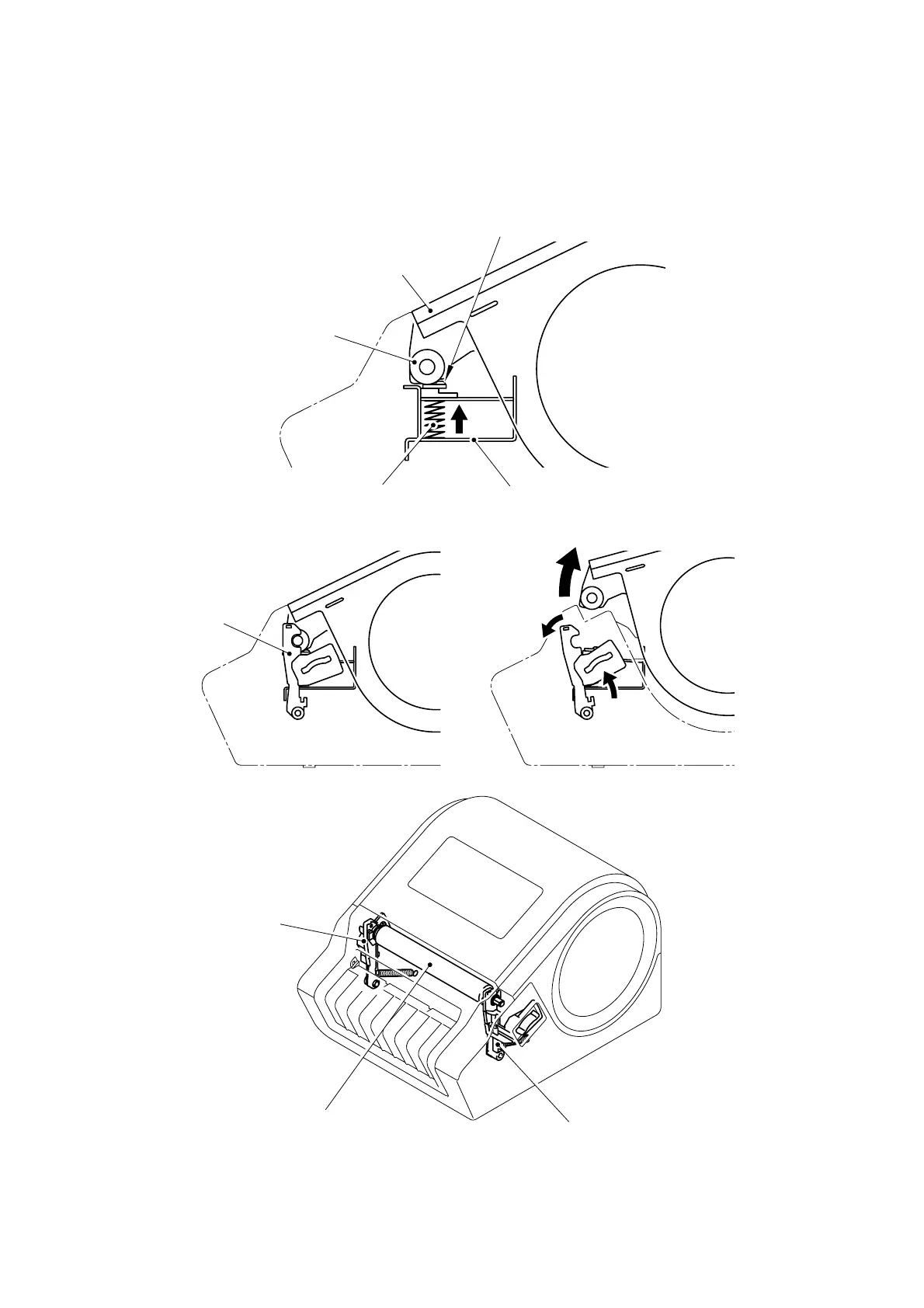

Fig. 2.1-2 Press Contact and Release Mechanism of Thermal Head
Release lever L, R
Head spring
Platen
Sub plate
Head ASSY
Top cover ASSY
Release lever R
Release lever L
Platen
To Next Page
