III- 16
[ 5 ] Removing the Front Cover, Panel Cover and Front Side Cover
(1) Turn the machine upside down, and remove the two screws of the front cover.
(2) Release the hooks of the front cover from the holes on the cutter unit ASSY and remove
the front cover.

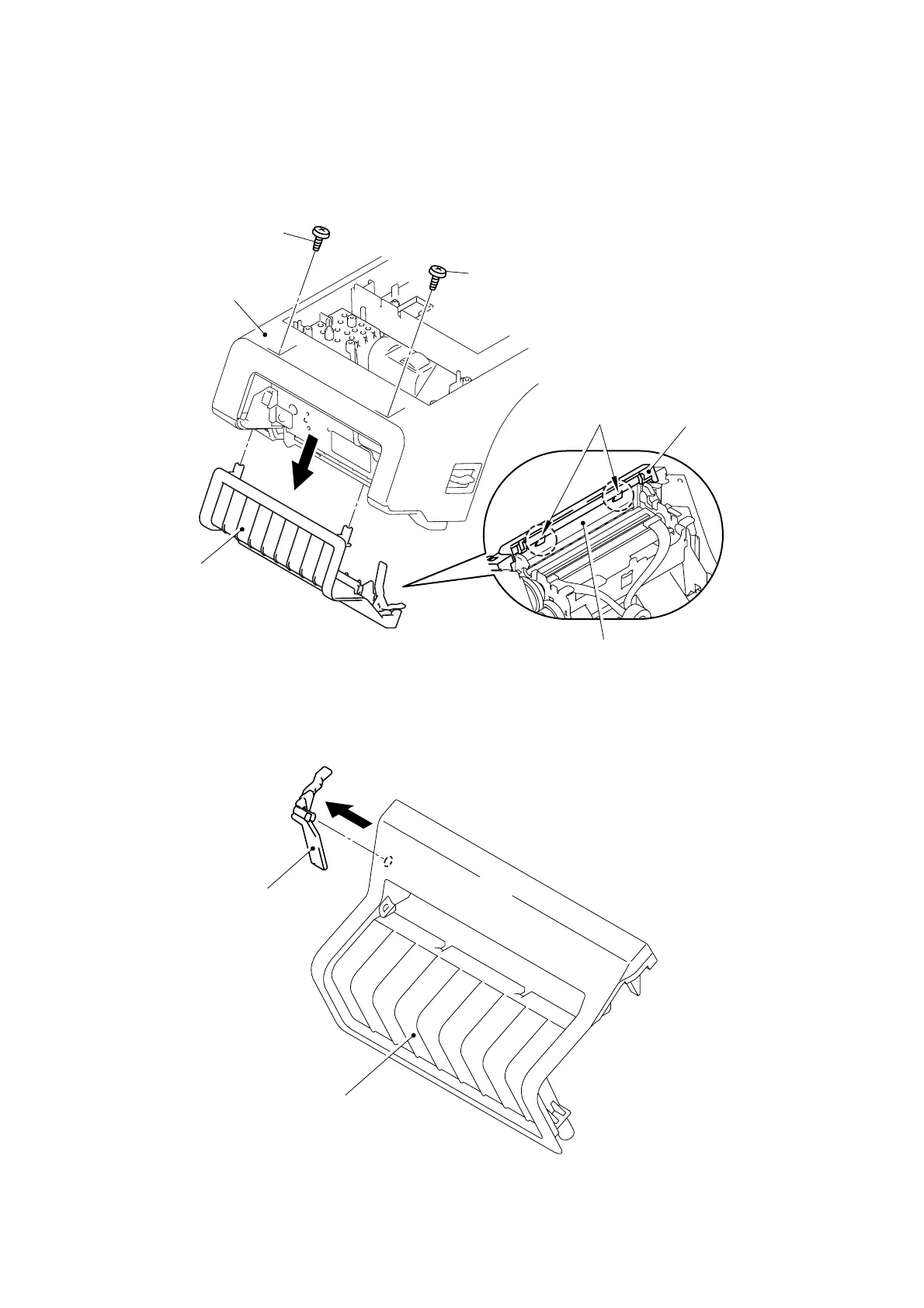

Fig. 3.1-19 Removing the Front Cover, Panel Cover and Front Side Cover (1)
(3) Remove the cover sensor arm L from the front cover.
Fig. 3.1-20 Removing the Front Cover, Panel Cover and Front Side Cover (2)
Front cover
Under cover
Cover sensor arm L
Front cover
Screw
Hooks
Front cover
Cutter unit ASSY
Screw
To Next Page
