III- 17

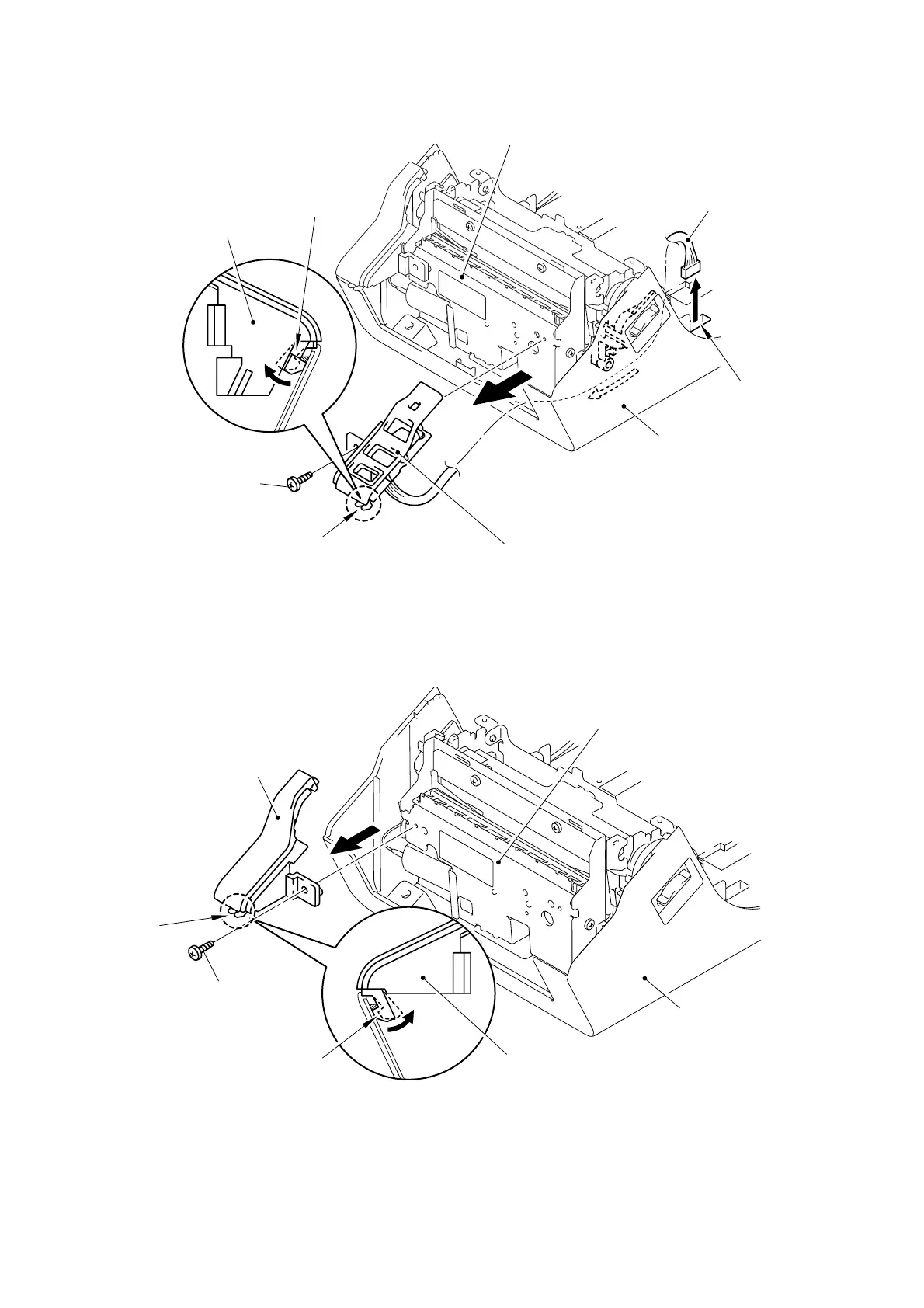

(4) Pull the harness out of the hole of the under cover. Remove the one screw and remove
the panel cover.
Fig. 3.1-21 Removing the Front Cover, Panel Cover and Front Side Cover (3)
(5) Remove the one screw and release the hook to remove the front side cover.
Fig. 3.1-22 Removing the Front Cover, Panel Cover and Front Side Cover (4)
Cutter unit ASSY
Panel cover
Screw
Front side cover
Screw
Under cover
Under cover
Hole
Hook
Hook
Panel cover
Front side cover
Cutter unit ASSY
Hook
Hook
Harness
