[ 6 ] Removing the Cutter Unit ASSY and Mecha ASSY
(1) Take out the harness from the hole of the under cover.
(2) Remove the two screws and remove the cutter unit ASSY from the mecha ASSY.

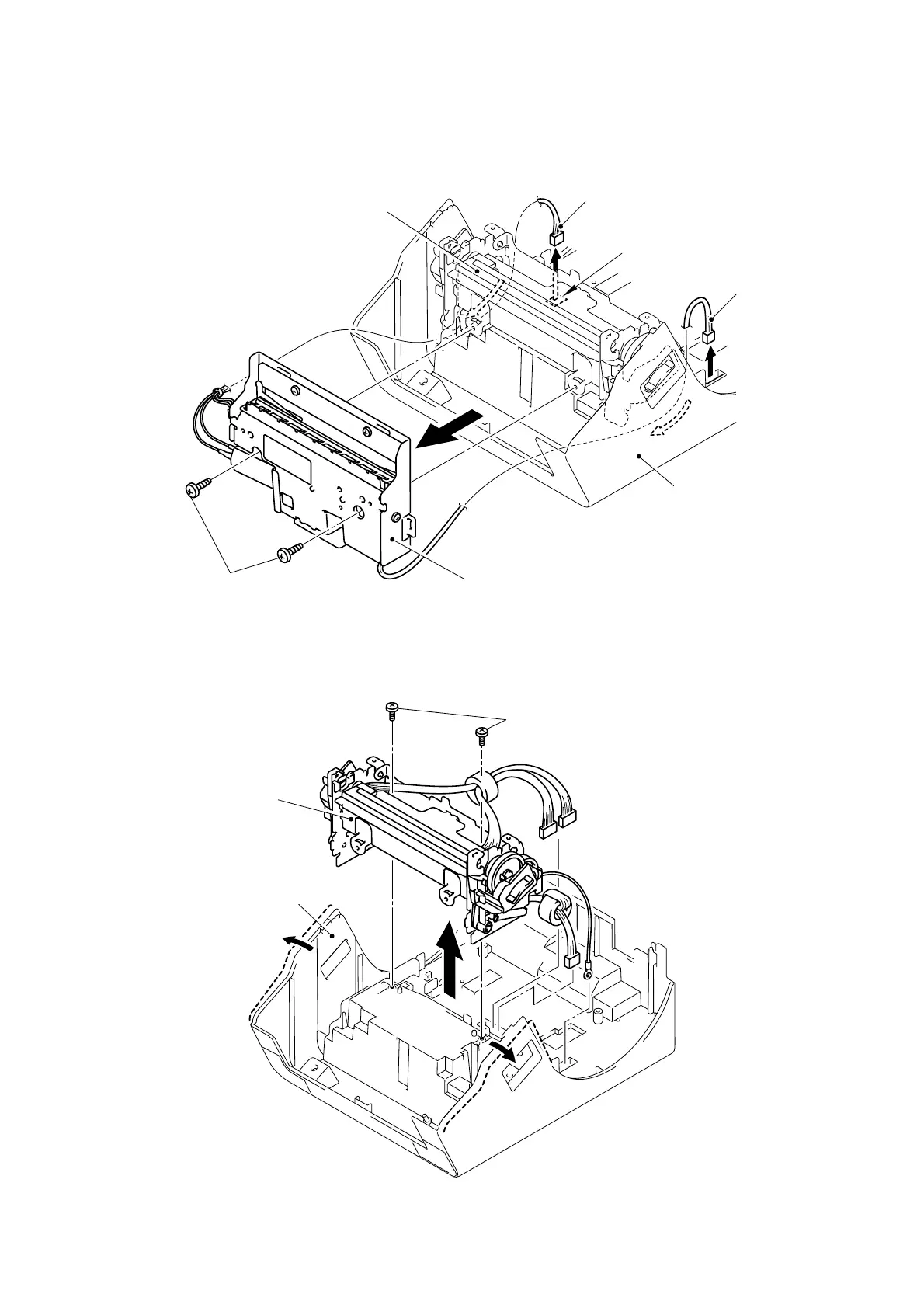

Fig. 3.1-23 Removing the Cutter Unit ASSY and Mecha ASSY (1)
(3) Pull the harnesses out of the under cover. Remove the two screws and remove the
mecha ASSY from the under cover while pulling both sides of the under cover outwards.
Fig. 3.1-24 Removing the Cutter Unit ASSY and Mecha ASSY (2)
Cutter unit ASSY
Screws
Screws
Under cover
Under cover
Mecha ASSY
Mecha ASSY
Harness
Hole
Harness
